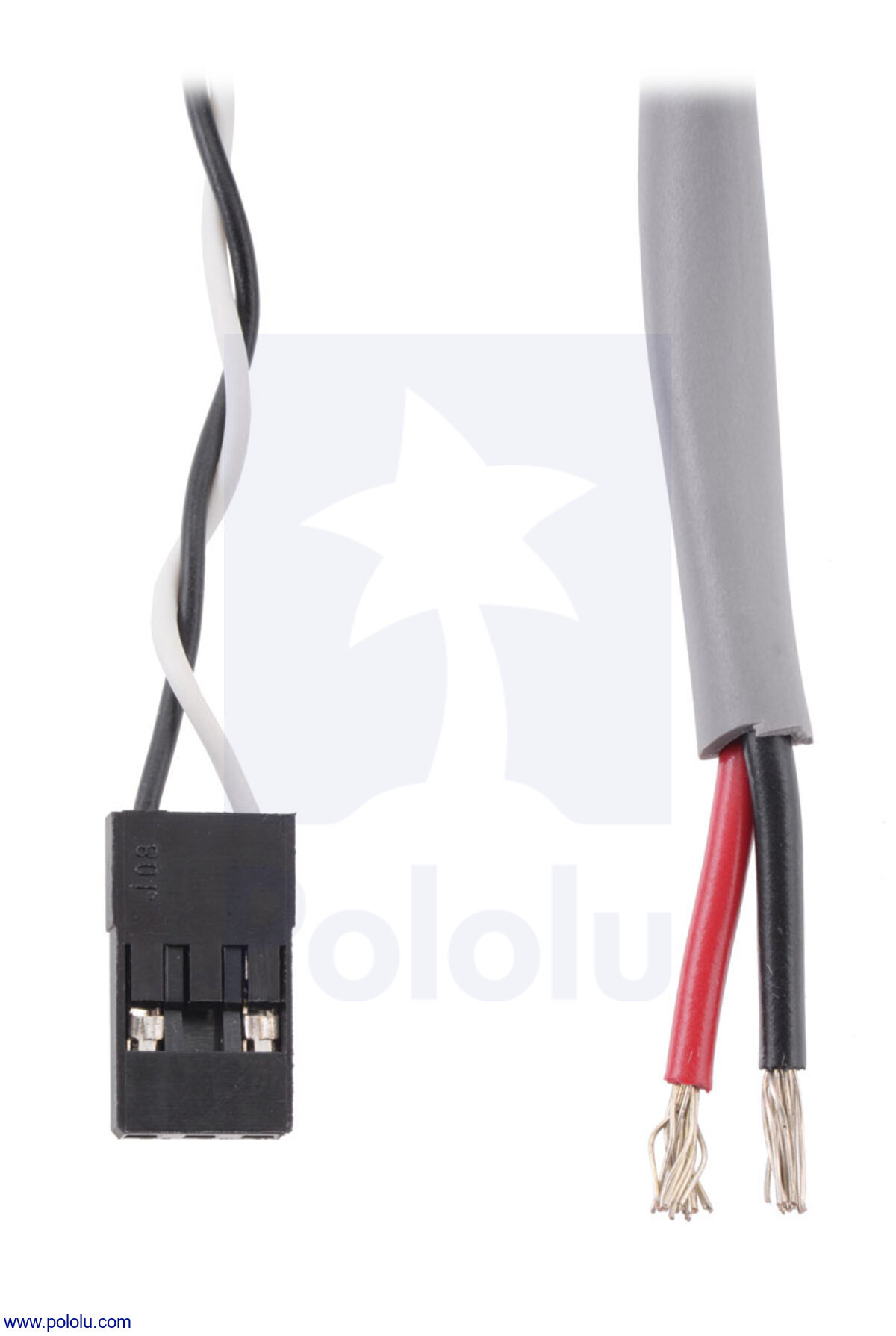

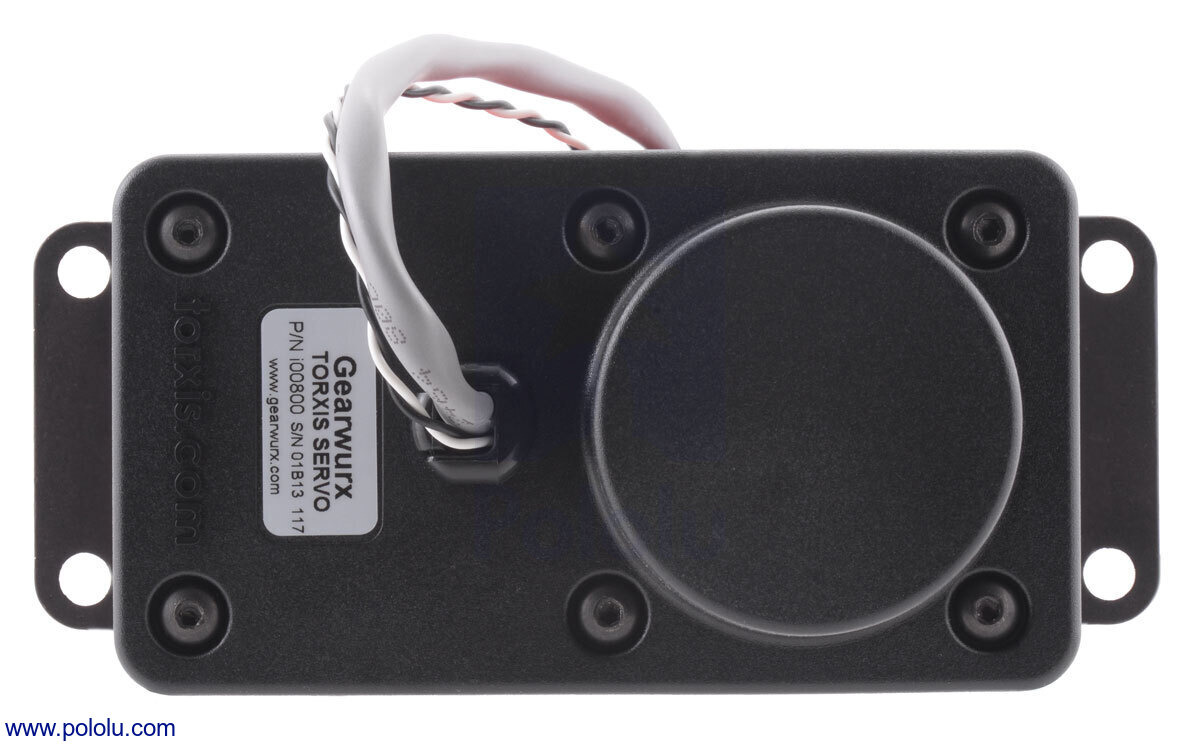

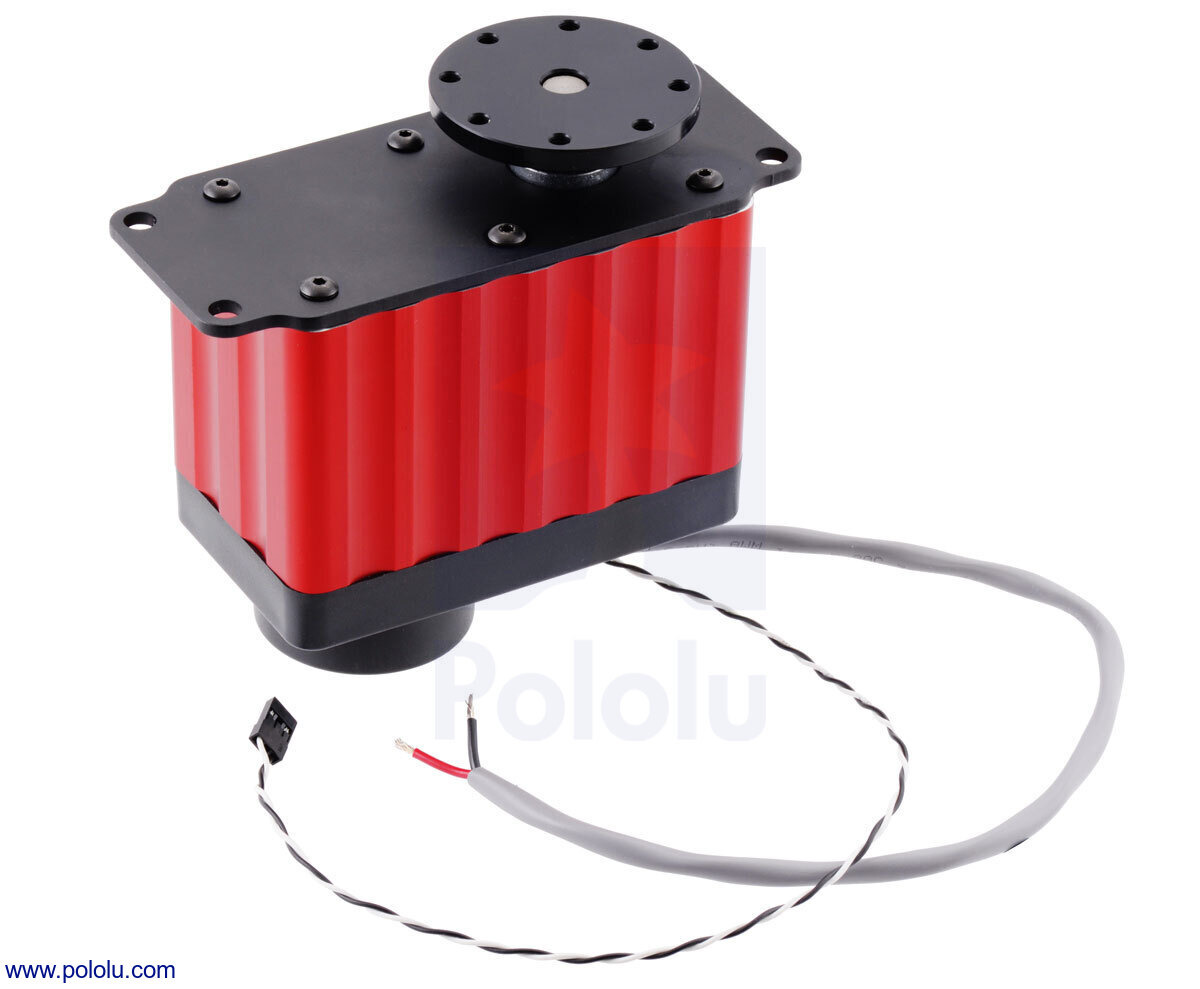

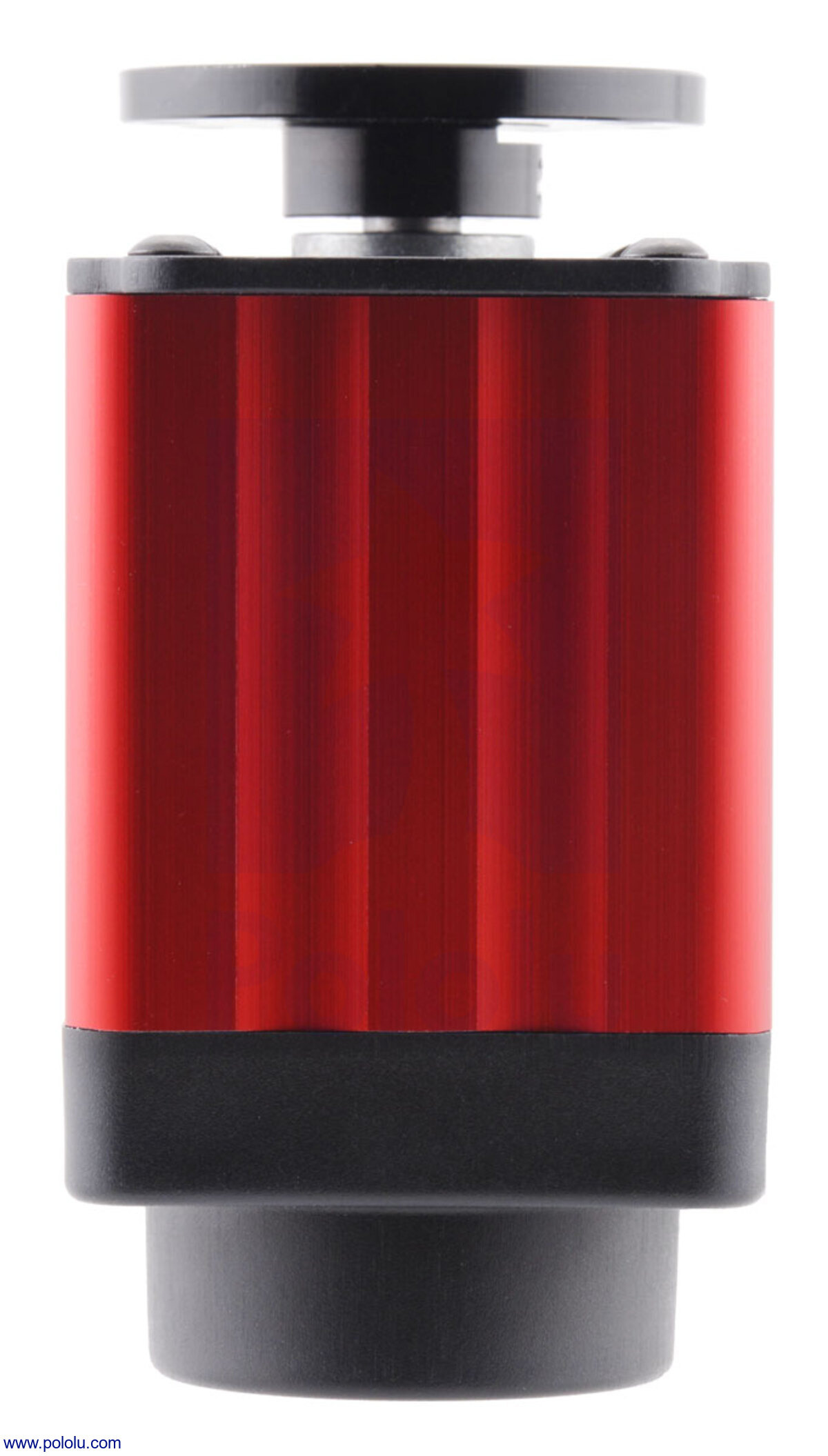

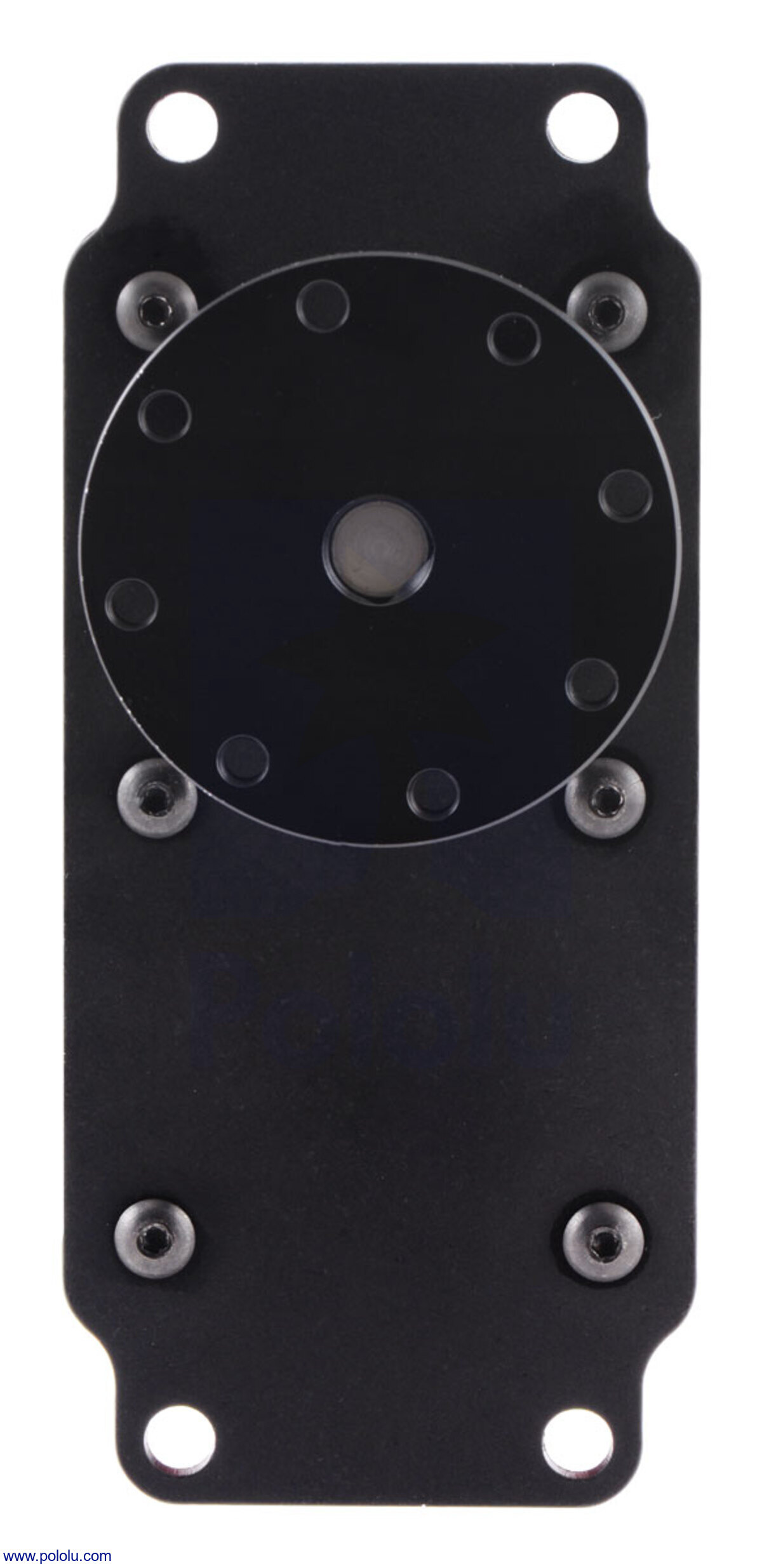

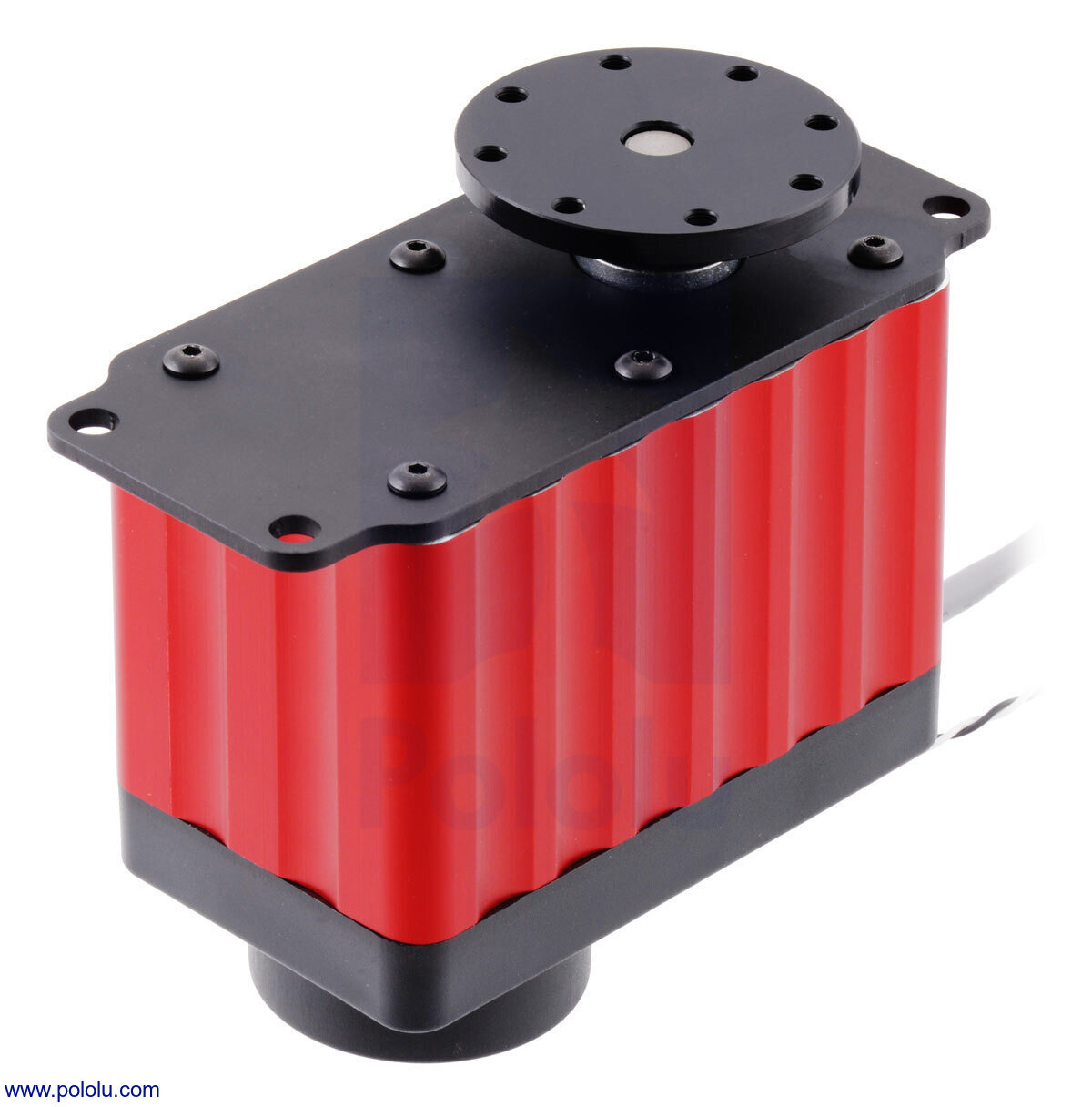

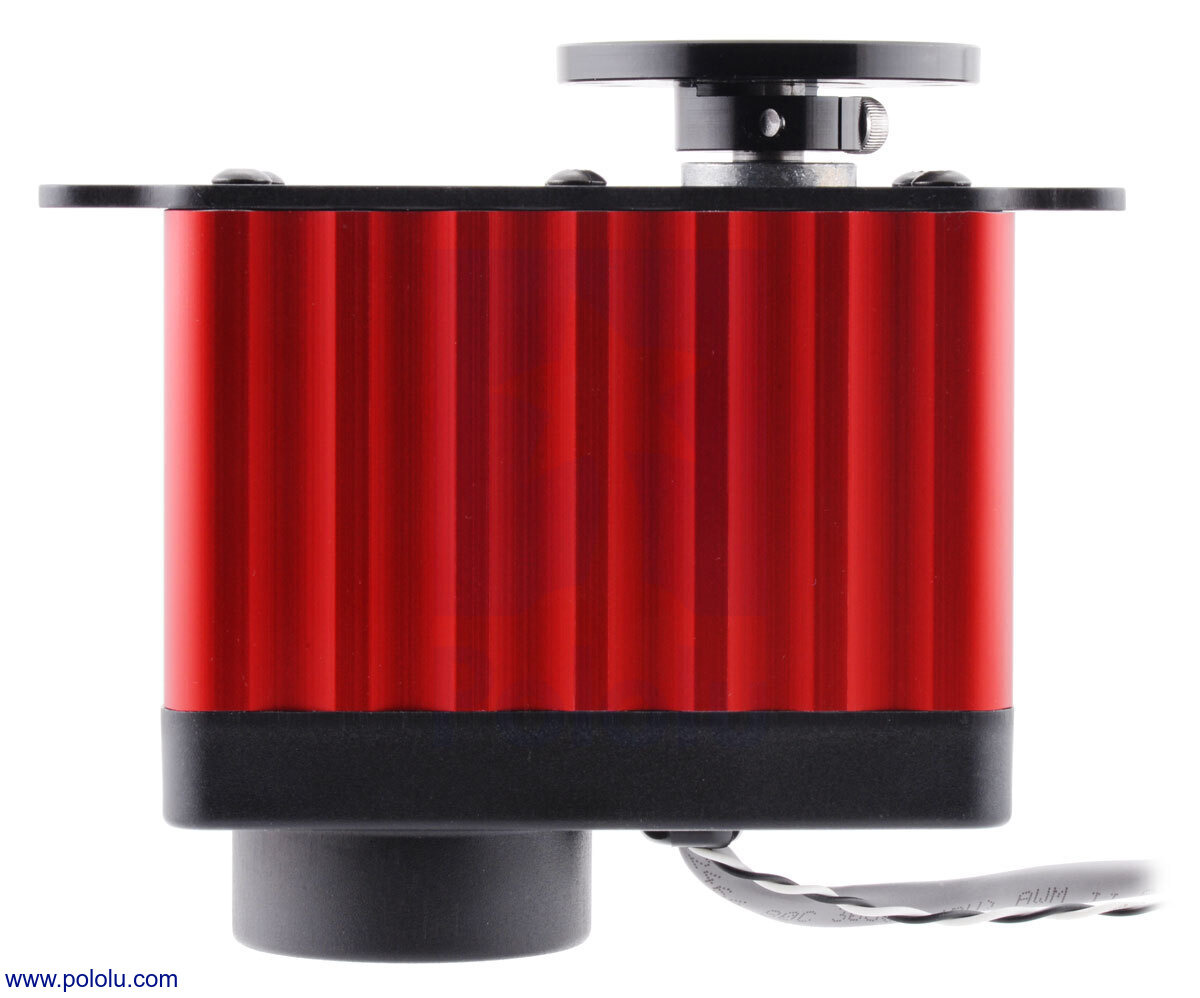

The i00800 Torxis is an ultra high torque servo that can deliver a continuous duty torque of up to 800 oz in (57 kg cm) at 12 V. This monster servo is controlled via the standard radio controlled hobby servo interface and can travel 90 degrees in 0.75 seconds. The Torxis servo s strength makes it suitable for applications that are too demanding even for giant scale servos, and its 0.125 thick mounting flange and aluminum main housing make it rugged enough for the rigors of a factory environment. Alternatives available with variations in these parameter(s) stall torque 12V Select variant The industrial grade Torxis high torque servos by GearWurx (formerly know as Invenscience) are available in two different gear ratios that let you select for higher power or higher speed The i00600 Torxis can rotate 90 in 1.5 seconds while providing 100 lb in (115 kg cm) of continuous duty torque (200 lb in peak torque). The i00800 Torxis can rotate 90 in 0.75 seconds while providing 50 lb in (57 kg cm) of continuous torque (100 lb in peak torque). The servo is powered by 12 volts DC and draws approximately 3 A at full load. All of its gears are metal for increased durability, and the 3 8 hardened output shaft is supported by two ball bearings. It is pre configured for a 90 degree range of motion, but this can be increased by reconfiguring the embedded controller (see the Bonus Feature section below for more information). The Torxis is controlled by the standard radio controlled (RC) hobby servo signal used by most RC receivers and servo controllers. The servo includes a pre mounted metal horn as shown in the pictures the horn has eight 10 32 threaded mounting holes. (No mounting hardware is included.) The Torxis control signal lead is terminated with a standard JR style connector, which consists of two wires ground (black) and RC PWM signal (white). Power is connected via the Torxis two separate, heavier gauge wires. The following video shows the i00600 Torxis servo lifting a 100 lb load as part of GearWurx s servo cycle testing Dimensions These servos are much larger than typical RC hobby servos and weigh approximately 2.2 lb (1.0 kg). The diagram below shows the dimensions of the Torxis servo. Applications The Torxis servo s power makes it suitable for ultra high torque applications that previously required custom feedback control systems including Unmanned ground vehicle controls Factory automation and valve actuation Heating ventilation and air conditioning airflow controllers Solar panel sun tracking Opening and closing gates and windows The Torxis servo is controlled by an embedded Jrk 21v3 , a highly customizable USB motor controller that also offers serial, analog, and USB interfaces. Using the free Jrk Configuration Utility, parameters including range, response curves, speed or current limits, and much more can be customized for your application. The Jrk enables the Torxis servo to function as a USB controlled servo while allowing the host computer to monitor and graph position, current, and other parameters in real time. For more information about these features, please see the Jrk 21v3 user s guide.
| Rated Speed |
0.5 sec 60 |
| Maximum Speed |
0.5 sec 60 |
| Rated Torque |
800 oz in3 |

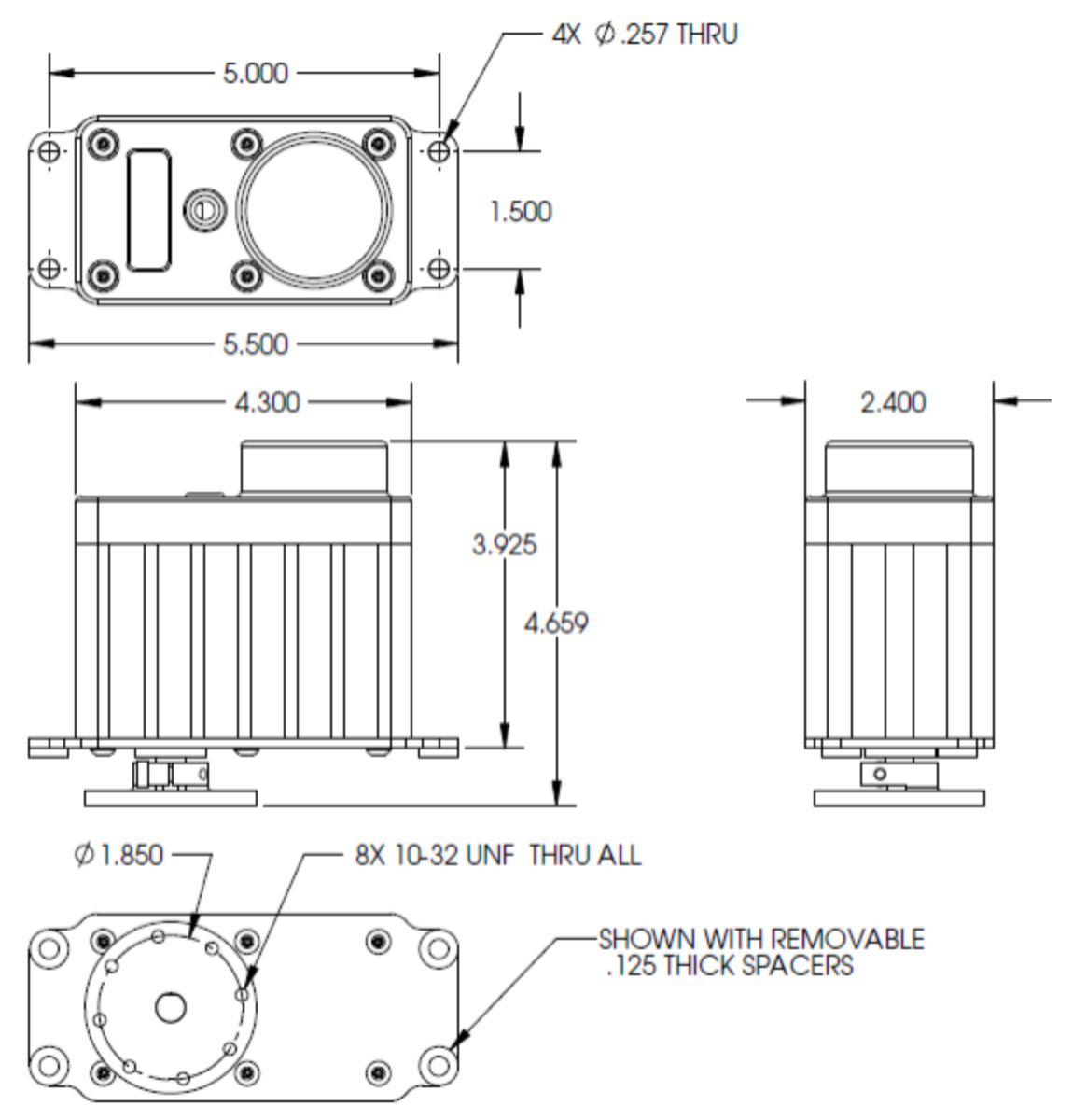

| Motor Frame Size |
5.50 x 2.40 x 4.66 |
| Weight |
2.2 lbs |
