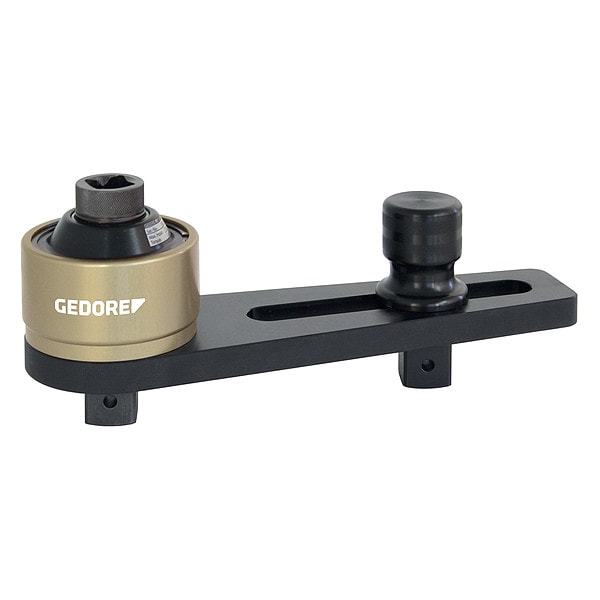

Torque Multiplier, 2800 Nm, 430 ft.-lb.
| Item | Torque Multiplier |
|---|---|
| Torque Measurement Type | Foot-Pound |
| Torque Ratio | 1:5.5 |
| Female Input Square Drive | 3/4 in |
| Male Output Square Drive | 1 in |
| Max. Rated Input | 410 ft-lb |
| Max. Rated Output | 2,050 ft-lb |
| Gear Ratio | 1:1.5 |
| Calibration Certificate Included | Yes |
| Material | Aluminum |
| Gear System | Single Stage Planetary |
| Accuracy | +/-3% |
| Includes | Molded Case |
| Angle of Turn Protractor | 5 Degrees Increments |

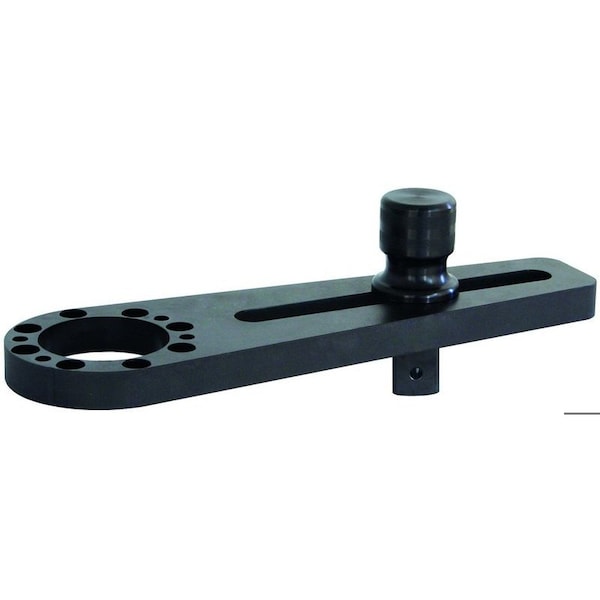

| Reaction System | L-Form Reaction Arm |
| Overload Protection | No |
| Head Dia. | 4-11/64 in |
| Application | Bridgebuilding, Bolting |
| Antibacklash Device | Not Included |
| Handle Length | 7-27/32 in |
| Head Thickness | 10 in |
| Overall Length | 9-15/16 in |
| Measurement Type | SAE |
| Weight | 9.04 lb |
| Color | Gold |
| Nonsparking | No |
| Insulated | No |
| Overall Width | 4-3/16 in |
| Overall Height | 5-3/4 in |
| Finish | Chrome |
| Mountable | Yes |
| Package Quantity | 1 |
