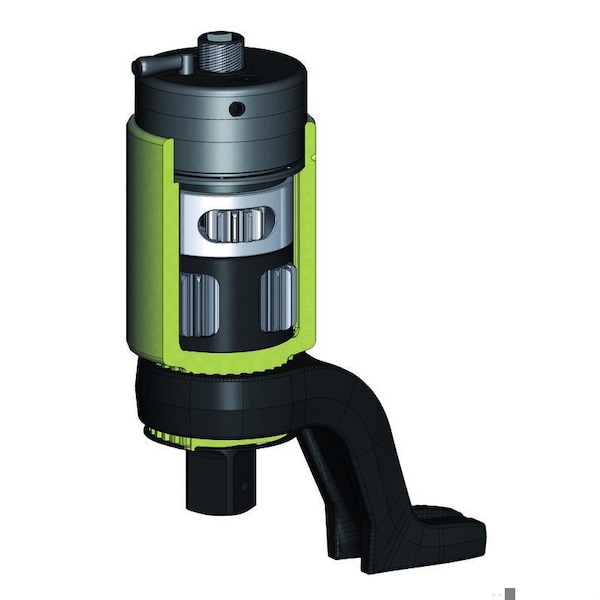

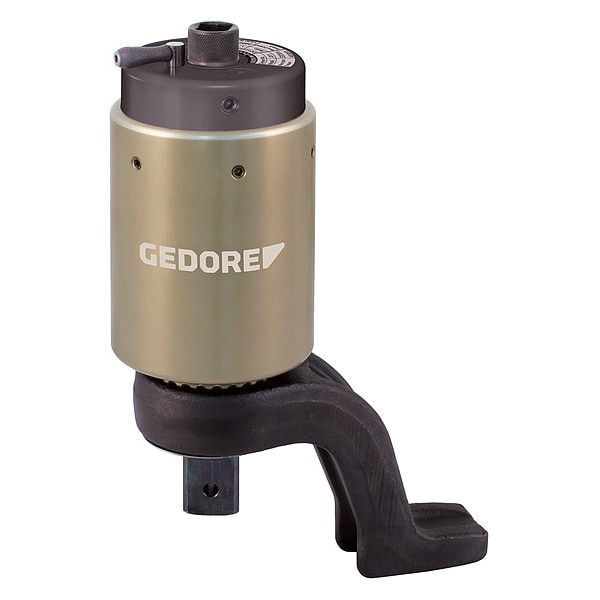

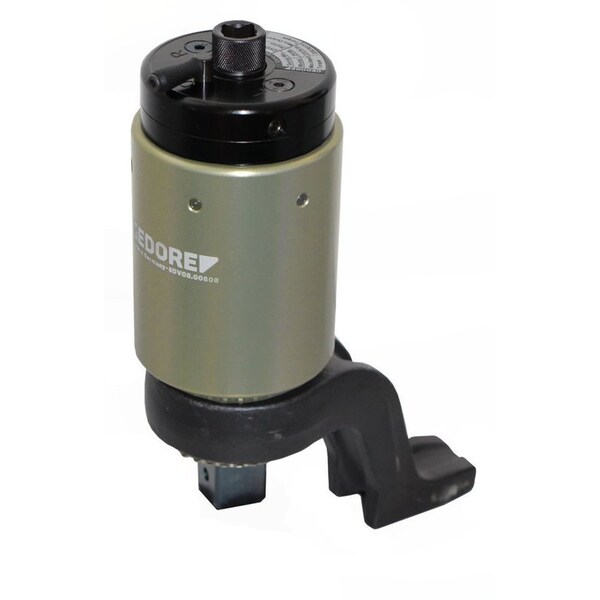

| Item | Torque Multiplier |
|---|---|
| Torque Measurement Type | Foot-Pound |
| Torque Ratio | 1:16 |
| Female Input Square Drive | 1/2 in |
| Male Output Square Drive | 1 in |
| Max. Rated Input | 230 ft-lb |
| Max. Rated Output | 2,930 ft-lb |
| Gear Ratio | 1:16 |
| Calibration Certificate Included | Yes |
| Accuracy | +/-3% |
| Reaction System | Z-Form Reaction Arm |
| Antibacklash Device | Self Contained |
| Gear System | 2 Stage (Planetary) |
| Head Dia. | 3-15/32 in |
| Handle Length | 5-23/64 in |
| Material | Aluminum |
| Angle of Turn Protractor | 5 Degrees Increments |
| Overall Length | 7-3/32 in |
| Application | Bridgebuilding, Bolting |
| Head Thickness | 10-5/8 in |
| Overload Protection | No |
| Includes | Molded Case |
| Nonsparking | No |
| Color | Gold |
| Measurement Type | SAE |
| Mountable | Yes |
| Overall Height | 10-5/8 in |
| Overall Width | 3-15/32 in |
| Insulated | No |
| Weight | 12.57 lb |
| Finish | Chrome |
| Package Quantity | 1 |
