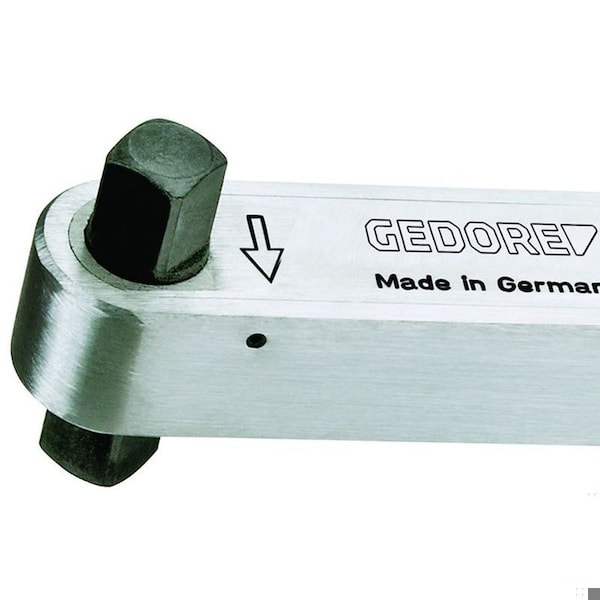

Torque Wrench, 520-1000 Nm, 380-730lbf-ft
| Item | Micrometer Torque Wrench |
|---|---|
| Drive Size | 3/4 in |
| Head Type | Standard |
| Overall Length | 32 in |
| Includes | (1) Extension Tube |
| Accuracy | +/-3% |
| Handle | One Piece |
| Material | Aluminum |
| Handle Type | One Piece |
| Handle Material | Aluminum |
| Torque Measurement Type | Newton-Meter, Foot-Pound |
| Rotation | Clockwise |
| Ratcheting | Yes |
| Standards | DIN EN ISO 6789:2003 Type II Class A |
| Setting | Manual |
| Calibration Certificate Included | Yes |
| Secondary Scale Increments | 10 ft-lb |
| Min. Number of Cycles | 5,000 |
| Primary Scale Range | 520 to 1,000 N-m |
| Tether Capable | Tether Capable |
| Primary Scale Increments | 10 N-m |
| Meets/Exceeds | NSN |
| Secondary Scale Range | 380 to 730 ft-lb |
| Visual/Audible Indicators | Audible Click |
| Dual Scale | Yes |
| Torque Increments | 10 ft-lb, 10 N-m |
| Tether Style | Tether Capable |
| Handle Color | Silver |
| Extended Data Testing | Yes, ISO 6789-2 |
| Counterclockwise Accuracy | +/- 6% |
| Corrosion Resistant | No |
| Secondary Scale Minimum Torque | 380 ft-lb |
| Clockwise Accuracy | +/- 3% |
| Torque Range | 520 to 1,000 N-m |
| Overall Width | 1-49/64 in |
| Weight | 9.35 lb |
| Primary Scale Minimum Torque | 520 N-m |
| Insulated | No |
| Torque Adjustability | Adjustable |
| Secondary Scale Maximum Torque | 730 ft-lb |
| Torque Setting | Adjustable |
| Primary Scale Maximum Torque | 1,000 N-m |
| Head Movement | Fixed |
| Finish | Natural |
| Torque Limiting Mechanism | Click-Type |
| Nonsparking | No |
| Package Quantity | 1 |
