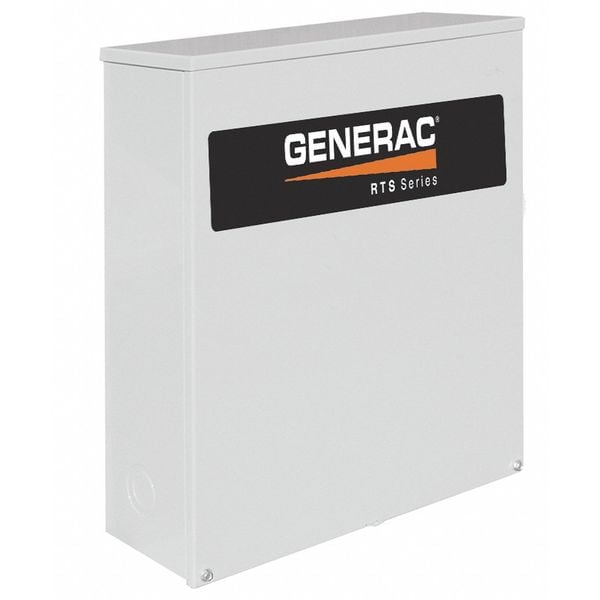

100 Amp Service Rated 120/208 3-Phase NEMA 3R
| Item | Automatic Transfer Switch |
|---|---|
| Time Delay Transfer | yes |
| For Use With | QT02515GNSX, QT02724GNAX, QT03015GNSX, QT03624GNAX, QT04524GNSC, QT04524GNSX, QT04854GNAC, QT04854GNAX, QT07068GNAC, QT07068GNAX, QT07068GVAC, QT07068GVAX, QT08046GNAX, QT08046GVAX, QT10068GNAC, QT10068GVAC, QT13068GNAC, QT13068GVAC, QT15068GNAC, QT15068GVAC, RD01523GDAE, RD02023GDAE, RD03024GDAE, RD05034GDAE, RG02515GNAX, RG02515GNSX, RG02724GNAX, RG03015GNAX, RG03015GNSX, RG03224GNAX, RG03624GNAX, RG03624GNSX, RG03824GNAX, RG04524GNAC, RG04524GNAX, RG04524GNSC, RG04524GNSX, RG04854GNAC, RG04854GNAX, RG04854GVAC, RG04854GVAX, RG06024GNAX, RG06024GNSX, RG06024GVAX, RG06024GVSX |
| Width | 20-1/8 in |
| Sensing Line Failure | 0.9 |
| Automatic Exerciser | No |
| Color | Gray |
| Max. Wire Size | 2/0-14 AWG |
| Time Delay Retransfer | Yes |
| Voltage | 208 V |
| Enclosure Material | Aluminum |
| Lockable | No |
| Max. No. of Tandem Breakers | 0 |
| Phase | 3 |
| Sensing Under Volts | 0.6 |
| NEMA Enclosure Type | 3R |
| Max. Amps | 100 |
| Time Delay Neutral | No |
| 2-Wire Start | No |
| Max. Wattage | 20,000 |
| Installation | Standard |
| Height | 24-1/8 in |
| Repeat of Exercise Cycle | 7 |
| Warranty | 5 yr |
| Load Transition Type | Open Transition |
| Depth | 7 in |
| Manual Override | Yes |
| Standards | UL, cUL |
| Sensing Generator Hz | No |
| Assembled Width | 21.82 in |
| Assembled Height | 48 in |
| Assembled Depth | 10.06 in |
| Package Quantity | 1 |
