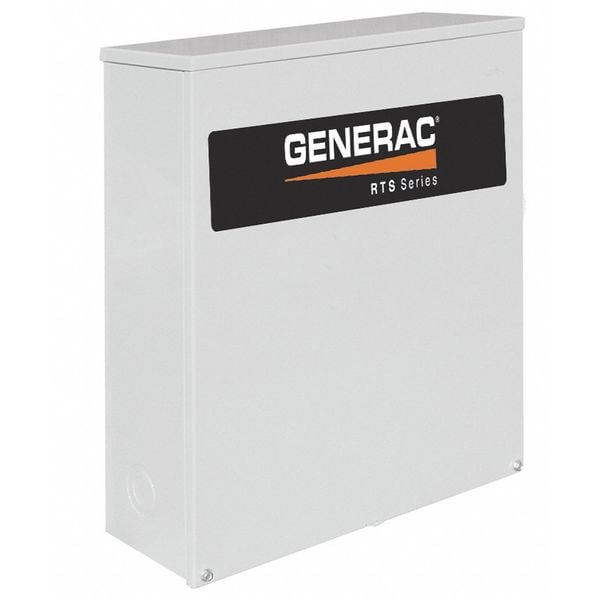

100 Amp Transfer Switch 120/208 3-Phase NEMA 3R CUL
| Item | Automatic Transfer Switch |
|---|---|
| Warranty | 2 yr |
| Phase | 3 |
| Max. Wattage | 20,000 |
| Max. Wire Size | 2/0-14 AWG |
| Depth | 7 in |
| Sensing Line Failure | 0.9 |
| Max. Amps | 100 |
| NEMA Enclosure Type | 3R |
| Installation | Standard |
| Time Delay Retransfer | Yes |
| Sensing Under Volts | 0.6 |
| Manual Override | Yes |
| Load Transition Type | Open Transition |
| Enclosure Material | Steel |
| Repeat of Exercise Cycle | 7 |
| Time Delay Transfer | yes |
| Voltage | 208 V |
| 2-Wire Start | No |
| For Use With | QT02224GNAX, QT03624GNAX, QT04854GNAC, QT06024GNSX, QT07068GNAC, QT07068GVAN, QT10068GNAC, QT10068GVAC, QT13068GNAC, QT13068GVAC, QT15068GNAC, QT15068GVAC, QTO2515GNSX, QTO2724GNAX, QTO3015GNSX, QTO4524GNSX, QTO4854GNAX, QTO6024GVSX, QTO7068GNAX, QTO7068GVAC QTO8046GNAX, QTO8046GVAX |
| Automatic Exerciser | No |
| Standards | cETLus |
| Width | 20-1/8 in |
| Lockable | No |
| Color | Gray |
| Height | 24-1/8 in |
| Time Delay Neutral | No |
| Sensing Generator Hz | No |
| Material | Aluminum |
| Overall Height | 24-1/8 in |
| Overall Depth | 7-1/8 in |
| Overall Width | 20-3/16 in |
| Exercise Cycle Interval | 7 day |
| Engine Cooldown Timer | 60 sec |
| Withstand Current Rating | 14,000 A |
| Re-Transfer Time Delay | 15 sec |
| Manufacturer Warranty | 2 yr |
| Current Rating | 100 A |
| Standby Voltage Sensor | 60% for 5 sec |
| Transfer to Generator Start Time Delay | 10 sec |
| Maximum Wire Size | 2/0 AWG |
| NEMA Enclosure Rating | 3 R |
| Compatible with Series | RTS |
| Compatible with Manufacturer Model Number | QT02224GNAX, QT03624GNAX, QT04854GNAC, QT06024GNSX, QT07068GNAC, QT07068GVAN, QT10068GNAC, QT10068GVAC, QT13068GNAC, QT13068GVAC, QT15068GNAC, QT15068GVAC, QTO2515GNSX, QTO2724GNAX, QTO3015GNSX, QTO4524GNSX, QTO4854GNAX, QTO6024GVSX, QTO7068GNAX, QTO7068GVAC, QTO8046GNAX, QTO8046GVAX |
| Engine Warmup Delay | 5 sec |
| Minimum Wire Size | 6 AWG |
| Service Rated Transfer Switch | No |
| Rated Voltage | 120/208V AC |
| Maximum Wattage | 20,000 W |
| Maximum Generator Input | 22,000 W |
| Amperage | 200 A |
| Installation Instructions Included | Yes |
| Brand / Model Compatibility | Generac |
| Installation Hardware Included | transfer switch |
| Color / Finish | Grey |
| Compatible with Mfr. Model No. | QT02224GNAX, QT03624GNAX, QT04854GNAC, QT06024GNSX, QT07068GNAC, QT07068GVAN, QT10068GNAC, QT10068GVAC, QT13068GNAC, QT13068GVAC, QT15068GNAC, QT15068GVAC, QTO2515GNSX, QTO2724GNAX, QTO3015GNSX, QTO4524GNSX, QTO4854GNAX, QTO6024GVSX, QTO7068GNAX, QTO7068GVAC, QTO8046GNAX, QTO8046GVAX |
| For Use with Mfr Model Number | QT02224GNAX, QT03624GNAX, QT04854GNAC, QT06024GNSX, QT07068GNAC, QT07068GVAN, QT10068GNAC, QT10068GVAC, QT13068GNAC, QT13068GVAC, QT15068GNAC, QT15068GVAC, QTO2515GNSX, QTO2724GNAX, QTO3015GNSX, QTO4524GNSX, QTO4854GNAX, QTO6024GVSX, QTO7068GNAX, QTO7068GVAC, QTO8046GNAX, QTO8046GVAX |
| Package Quantity | 1 |
