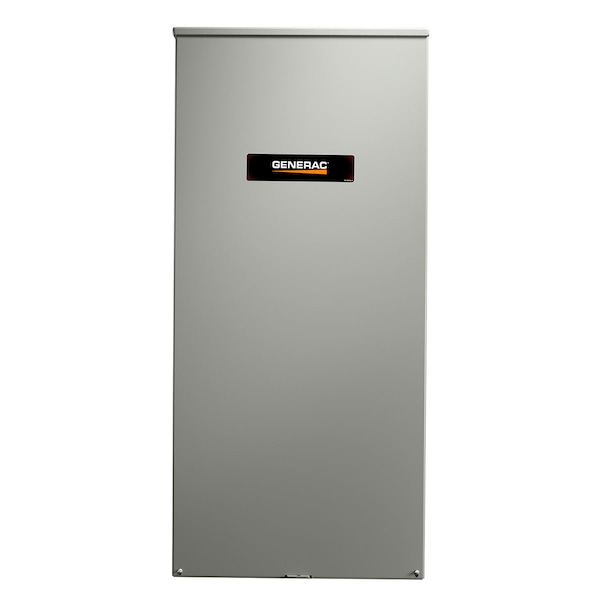

200 Amp Service Rated 120/240 3-Phase NEMA 3R
| Item | Transfer Switch |
|---|---|
| Time Delay Retransfer | Yes |
| Load Transition Type | Open Transition |
| For Use With | Three Phase Generator |
| Height | 48 in |
| NEMA Enclosure Type | 3R |
| Width | 21-51/64 in |
| Voltage | 240 V |
| Enclosure Material | Aluminum |
| Manual Override | Yes |
| Phase | Three |
| Depth | 10-7/64 in |
| Warranty | 2 yr |
| Max. Wire Size | 400 MCM |
| Automatic Exerciser | No |
| Max. Amps | 200 |
| Installation | Single Person Installation |
| Material | Aluminum |
| Standards | UL Listed |
| Overall Depth | 10-1/16 in |
| Assembled Depth | 10.06 in |
| Assembled Height | 48 in |
| Installation Instructions Included | Yes |
| Color / Finish | Grey |
| Amperage | 200 A |
| Installation Hardware Included | Yes |
| Assembled Width | 21.82 in |
| Overall Height | 48 in |
| Overall Width | 21-13/16 in |
| Brand / Model Compatibility | Generac |
| Maximum Generator Input | 22,000 W |
| Product Type | 200 Amp Service Rated 120/240 3Ø NEMA 3R |
| Current Rating | 200 A |
| Withstand Current Rating | 18,000 A |
| Rated Voltage | 120/240V AC |
| Transfer to Generator Start Time Delay | 5 sec |
| Compatible with Series | RTS |
| Minimum Wire Size | 4 AWG |
| Service Rated Transfer Switch | Yes |
| Maximum Wattage | 18,000 W |
| Compatible with Brand | Generac |
| Manufacturer Warranty | 5 yr |
| Engine Warmup Delay | 5 sec |
| Re-Transfer Time Delay | 15 sec |
| NEMA Enclosure Rating | 3 R |
| Maximum Wire Size | 400 MCM |
| Engine Cooldown Timer | 60 sec |
| Package Quantity | 1 |
