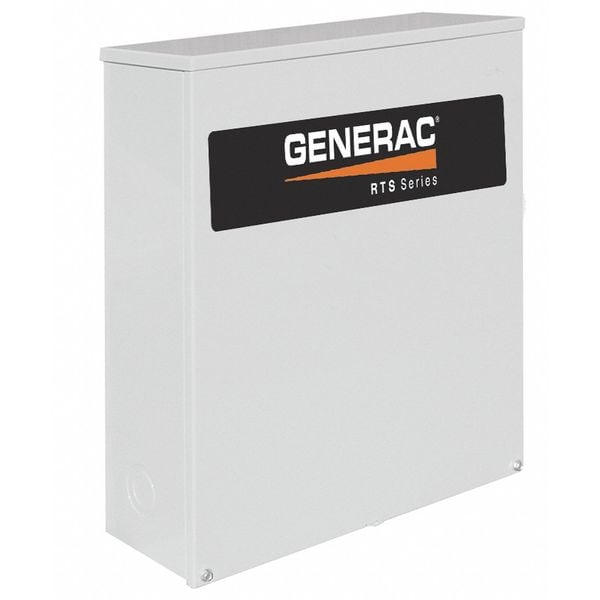

200 Amp Transfer Switch 277/480 3-Phase NEMA 3R CUL
| Item | Automatic Transfer Switch |
|---|---|
| Lockable | No |
| Enclosure Material | Steel |
| Time Delay Retransfer | Yes |
| Max. Amps | 200 |
| Automatic Exerciser | No |
| Phase | 3 |
| Sensing Generator Hz | No |
| Sensing Under Volts | 0.6 |
| Max. Wire Size | 400 MCM |
| Height | 48 in |
| Time Delay Transfer | yes |
| Depth | 13 in |
| Manual Override | Yes |
| Width | 30 in |
| For Use With | QT03624KNAX, QT04854KNAC, QT06024KNSX, QT07068KNAC, QT07068KVAN, QT10068KNAC, QT10068KVAC, QT13068KNAC, QT13068KVAC, QT15068KNAC, QT15068KVAC, QTO4524KNSX, QTO4854KNAX, QTO6024KVSX, QTO7068KNAX, QTO7068KVAC QTO8046KNAX, QTO8046KVAX |
| NEMA Enclosure Type | 3R |
| Load Transition Type | Open Transition |
| Max. Wattage | 45,000 |
| Color | Gray |
| Standards | cETLus |
| Sensing Line Failure | 0.9 |
| Installation | Standard |
| 2-Wire Start | No |
| Time Delay Neutral | No |
| Warranty | 2 yr |
| Voltage | 480 V |
| Material | Aluminum |
| Overall Height | 48-1/8 in |
| Overall Width | 30-1/8 in |
| Overall Depth | 13-1/8 in |
| Engine Warmup Delay | 5 sec |
| Standby Voltage Sensor | 60% for 5 sec |
| Maximum Wire Size | 400 MCM |
| Maximum Wattage | 45,000 W |
| Transfer to Generator Start Time Delay | 10 sec |
| Rated Voltage | 277/480V AC |
| Engine Cooldown Timer | 60 sec |
| Current Rating | 200 A |
| Compatible with Series | RTS |
| Minimum Wire Size | 4 AWG |
| NEMA Enclosure Rating | 3 R |
| Compatible with Manufacturer Model Number | QT03624KNAX, QT04854KNAC, QT06024KNSX, QT07068KNAC, QT07068KVAN, QT10068KNAC, QT10068KVAC, QT13068KNAC, QT13068KVAC, QT15068KNAC, QT15068KVAC, QTO4524KNSX, QTO4854KNAX, QTO6024KVSX, QTO7068KNAX, QTO7068KVAC, QTO8046KNAX, QTO8046KVAX |
| Service Rated Transfer Switch | No |
| Withstand Current Rating | 25,000 A |
| Manufacturer Warranty | 2 yr |
| Re-Transfer Time Delay | 15 sec |
| Color / Finish | Grey |
| Brand / Model Compatibility | Generac |
| Installation Hardware Included | transfer switch |
| Maximum Generator Input | 22,000 W |
| Amperage | 200 A |
| Installation Instructions Included | Yes |
| Compatible with Mfr. Model No. | QT03624KNAX, QT04854KNAC, QT06024KNSX, QT07068KNAC, QT07068KVAN, QT10068KNAC, QT10068KVAC, QT13068KNAC, QT13068KVAC, QT15068KNAC, QT15068KVAC, QTO4524KNSX, QTO4854KNAX, QTO6024KVSX, QTO7068KNAX, QTO7068KVAC, QTO8046KNAX, QTO8046KVAX |
| For Use with Mfr Model Number | QT03624KNAX, QT04854KNAC, QT06024KNSX, QT07068KNAC, QT07068KVAN, QT10068KNAC, QT10068KVAC, QT13068KNAC, QT13068KVAC, QT15068KNAC, QT15068KVAC, QTO4524KNSX, QTO4854KNAX, QTO6024KVSX, QTO7068KNAX, QTO7068KVAC, QTO8046KNAX, QTO8046KVAX |
| Package Quantity | 1 |
