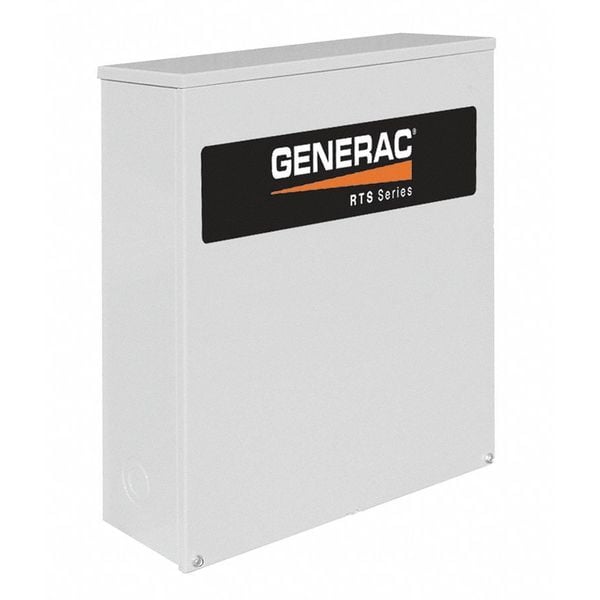

400 Amp Transfer Switch 277/480 3-Phase NEMA 3R CUL
| Item | Automatic Transfer Switch |
|---|---|
| Voltage | 480 V |
| Enclosure Material | Steel |
| For Use With | QT03624KNAX, QTO4524KNSX, QT04854KNAC, QTO4854KNAX, QT06024KNSX, QTO6024KVSX, QT07068KNAC, QT07068KVAN, QTO7068KNAX, QTO7068KVAC QTO8046KNAX, QTO8046KVAX, QT10068KNAC, QT10068KVAC, QT13068KNAC, QT13068KVAC, QT15068KNAC, QT15068KVAC |
| Color | Gray |
| Max. Amps | 400 |
| Warranty | 2 yr |
| 2-Wire Start | No |
| Time Delay Transfer | Adjustable |
| Max. Wire Size | 600 MCM |
| Phase | 3 |
| Depth | 10 in |
| Standards | UL, Cul |
| Sensing Under Volts | Adjustable |
| Load Transition Type | Open Transition |
| Time Delay Retransfer | Yes |
| Time Delay Neutral | No |
| NEMA Enclosure Type | 3R |
| Manual Override | Yes |
| Installation | Standard |
| Height | 48 in |
| Sensing Generator Hz | Yes |
| Width | 30 in |
| Repeat of Exercise Cycle | 7 |
| Sensing Line Failure | Adjustable |
| Lockable | No |
| Automatic Exerciser | Yes |
| Material | Aluminum |
| Installation Hardware Included | transfer switch |
| Maximum Generator Input | 48,000 W |
| Overall Depth | 17 in |
| Overall Height | 52 in |
| Installation Instructions Included | Yes |
| Amperage | 400 A |
| Color / Finish | Grey |
| Brand / Model Compatibility | Generac |
| Overall Width | 25 in |
| Package Quantity | 1 |
