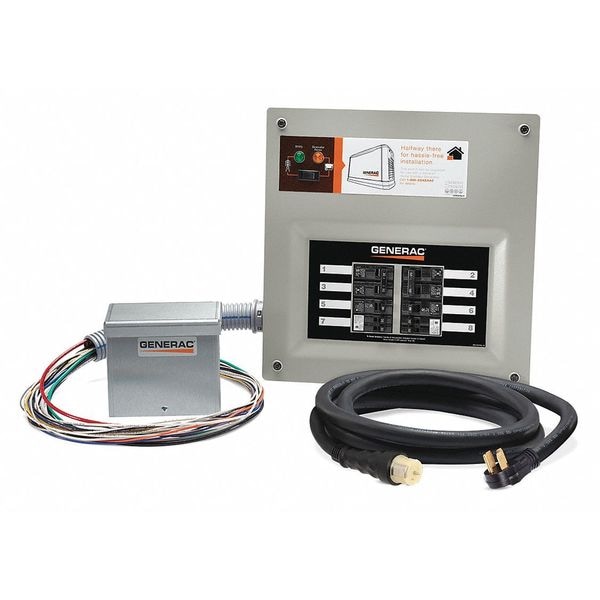

50 Amp HomeLink MTS Kit (alum PIB), 10-16 circuits, flush or surface mount, NEMA 1
| Item | Manual Transfer Switch |
|---|---|
| Color | Gray |
| NEMA Enclosure Type | 1 |
| Depth | 4 in |
| Enclosure Material | Aluminum |
| Height | 15-13/16 in |
| Ground Bar Kit | Mfr. No. 0K9607 |
| Mount | Wall |
| Includes | 10 ft 6/4 with CS6364 Female End NEMA 14-50 Male Ends Cord, 12 in Pre-Wired Whip, Install Manual, Wiring Harness, Conduit and Fittings, Power Inlet Box: 50A Aluminum (Must be Hardwired), Transfer Switch |
| NEMA Connector | Non-NEMA |
| Max. Amps | 50 |
| Warranty | 5 yr |
| Number of Circuits | 16 |
| Standards | cETLus |
| Phase | 1 |
| For Use With | GP15000E, GP17500E, XG10000E, XP10000E |
| Width | 15-13/32 in |
| Voltage | 120/240V |
| Max. Wattage | 12,000 |
| Number of Spaces | 16 |
| Max. No. of Tandem Breakers | 2 |
| Required Main Breaker in Load Center (Amp) | 50 A |
| Current Rating | 50 A |
| Overall Width | 15-3/8 in |
| Rated Voltage | 120/240V AC |
| Required Main Breaker | 50 A |
| Maximum Number of Tandem Breakers | 2 |
| NEMA Enclosure Rating | 1 |
| Breakers Included | (2) 20 A 1P, 20 A 2P, 30 A 2P |
| Compatible with Brand | Generac |
| Minimum Wire Size | 6 AWG |
| Manufacturer Warranty | 5 yr |
| Maximum Wattage | 11 kW |
| Overall Height | 15-13/16 in |
| Overall Depth | 4 in |
| Maximum Wire Size | 4 AWG |
| Compatible with Manufacturer Model Number | GP15000E, GP17500E, XG10000E, XP10000E |
| Prewired | Yes |
| Includes Power Indicator Lights | Yes |
| Exterior Lighting Product Type | Post and Lamp Sets |
| Compatible with Mfr. Model No. | GP15000E, GP17500E, XG10000E, XP10000E |
| For Use with Mfr Model Number | GP15000E, GP17500E, XG10000E, XP10000E |
| Package Quantity | 1 |
