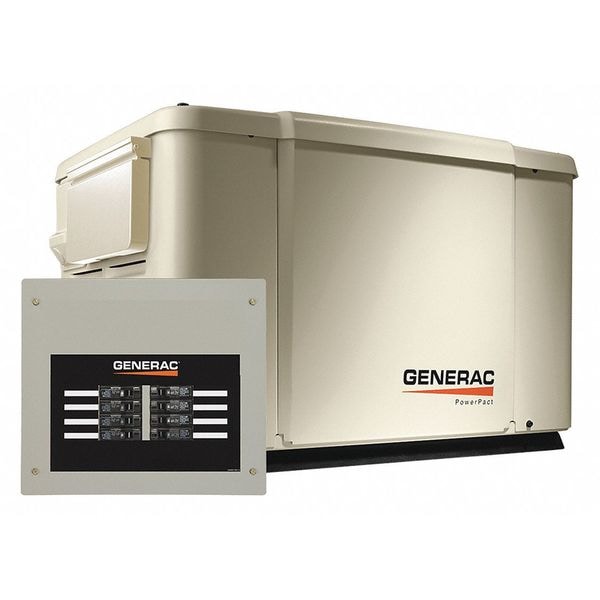

Automatic Standby Generator, Natural Gas/Propane, Single Phase, 7.5kW LP/6kW NG, Air Cooled
| Item | Automatic Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Single |
| Transfer Switch Included | Yes |
| Amps | 31.3/25 |
| Rated Voltage | 240V AC |
| Generator Voltage | 120V AC/240V AC |
| Engine Cooling | Air |
| Standby Power Rating | 7.5kW LP/6kW NG |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | Yes |
| Low Oil Pressure Alarm | Yes |
| Length | 36 in |
| Enclosure Material | Aluminum |
| 12VDC Battery Charger | No |
| Width | 27 in |
| Main Circuit Breaker | Yes |
| Standards | UL 142/ULC SG01, UL/CUL 2200 |
| Engine Block Heater | Optional |
| Battery Included | No |
| Engine Size | 426 cc |
| Power Factor | 1 |
| High Temp. Alarm | Yes |
| NG Consumption @ Half Load | 73 cu ft/hr |
| Battery Requirements | 26R |
| Automatic Volts Regulation | Yes |
| Generator Mfr. Warranty Details | 5 yr |
| Hz | 60 Hz |
| Engine RPM | 3,600 RPM |
| Height | 25 in |
| Run Time Hour Meter | Yes |
| Low Coolant Level Alarm | yes |
| LP Consumption @ Half Load | 0.87 gph |
| Over Speed Shutdown | Yes |
| Over Crank Protection | Yes |
| Repeat of Exercise Cycle | 7 day |
| Engine (Block Heater) | Optional |
| Includes | (8) 50A Circuit Transfer Switch, Composite Mounting Pad, Flexible Fuel Line Connector |
| Fuel NPT Pipe Connection Sz. | 3/4 in |
| kVA Rating | 6 kVA, 7 kVA |
| kW | 7 LP/6 NG |
| Min. Gas Pressure @ Generator (In WC) | 11 to 14 |
| Sound Level dBA | 69 dBA |
| Fuel Tank Capacity | Not Applicable |
| Fault Indicator Lights | Yes |
| Length (Straight Wireway) | 48 in |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Engine Displacement | 426 cc |
| Wi-Fi Equipped | Yes |
| Rated Current @ 120V AC - Propane (LPG) | Not Applicable |
| Starter Type | 12V DC |
| Running Wattage - Diesel | Not Applicable |
| Natural Gas (NG) Consumption @ Full Load | 117 cfh |
| 12V DC Battery Charger | Yes |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Natural Gas (NG) Consumption @ 1/2 Load | 73 cfh |
| Service Rated Transfer Switch | Yes |
| Propane (LPG) Consumption @ Full Load | 51.6 cfh |
| Maximum Fuel Pressure - Natural Gas (NG) | 14 in wc |
| Noise Level | 67 dBA |
| Apparent Power Rating | 6 kVA, 7 kVA |
| Includes Battery | No |
| Minimum Fuel Pressure - Natural Gas (NG) | 11 in wc |
| Exercise Cycle Interval | 7 day |
| Overall Height | 25 in |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Safety Features | Automatic Voltage Regulator (AVR), Fault Indicator Lights, High Temperature Alarm, Low Coolant Level Alarm, Low Oil Warning, Over Speed Shutdown, Overcrank Protection, Run Time Hour Meter |
| Engine Type | OHV |
| Manufacturer Warranty | 3 yr |
| Rated Current @ 240V AC - Propane (LPG) | 31.25 A |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Battery Group Number | Group 26R |
| Fuel NPT Pipe Connection Size | 3/4 in |
| Running Wattage - Natural Gas (NG) | 6 kW |
| Overall Length | 36 in |
| Rated Current @ 240V AC - Natural Gas (NG) | 25 A |
| Transfer Switch Coverage | Whole House |
| Running Wattage - Propane (LPG) | 7.5 kW |
| Overall Width | 27 in |
| Engine Brand | Generac |
| Run Time @ Full Load - Diesel | Not Applicable |
| Engine Speed | 3,600 RPM |
| Propane (LPG) Consumption @ 1/2 Load | 0.87 gph |
| Rated Frequency | 60 Hz |
| Transfer Switch Current Rating | 50 A |
| Package Quantity | 1 |
