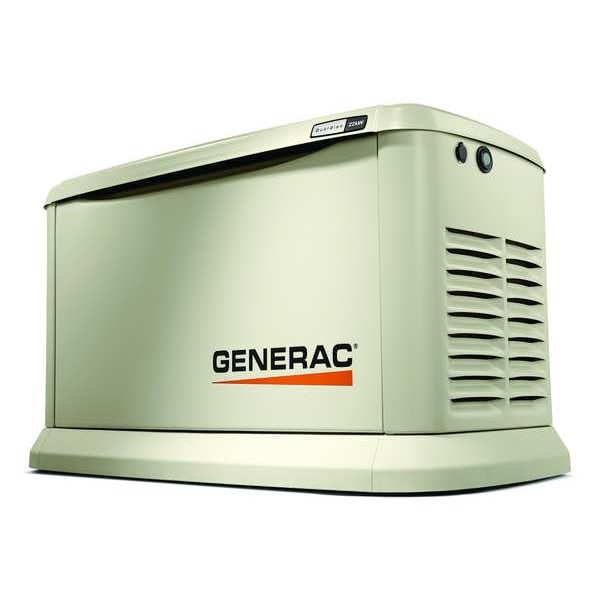

Automatic Standby Generator, Single Phase, 22kW LP/19kW NG, Air Cooled
| Item | Automatic Standby Generator |
|---|---|
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Single |
| Transfer Switch Included | No |
| Amps | 100 |
| Rated Voltage | 240V AC |
| Engine Cooling | Air |
| Standby Power Rating | 19kW NG, 22kW LP |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | Yes |
| High Temp. Alarm | Yes |
| Sound Level dBA | 67 dBA |
| Engine Block Heater | Optional |
| kVA Rating | 19 kVA, 22 kVA |
| Min. Gas Pressure @ Generator (In WC) | 11 to 14 |
| Engine (Block Heater) | Optional |
| Battery Requirements | 26R |
| Power Factor | 1 |
| 12VDC Battery Charger | No |
| Main Circuit Breaker | Yes |
| Automatic Volts Regulation | Yes |
| Hz | 60 Hz |
| Repeat of Exercise Cycle | 7 day |
| kW | 22 LP/19 NG |
| Over Speed Shutdown | Yes |
| Generator Mfr. Warranty Details | 5 yr |
| Engine Size | 999 cc |
| NG Consumption @ Half Load | 184 cu ft/hr |
| Fault Indicator Lights | Yes |
| Engine RPM | 3,600 RPM |
| Standards | UL 142/ULC SG01, UL/CUL 2200 |
| Length | 48 in |
| Battery Included | No |
| Includes | Composite Mounting Pad, Flexible Fuel Line Connector |
| LP Consumption @ Half Load | 2.53 gph |
| Low Oil Pressure Alarm | Yes |
| Fuel NPT Pipe Connection Sz. | 3/4 in |
| Run Time Hour Meter | Yes |
| Low Coolant Level Alarm | yes |
| Enclosure Material | Aluminum |
| Fuel Tank Capacity | Not Applicable |
| Width | 25 in |
| Over Crank Protection | Yes |
| Height | 44 in |
| Application | Home |
| Length (Straight Wireway) | 48 in |
| Rated Watts | 22 kW |
| Rated Current @ 240V AC - Natural Gas (NG) | 81.3 A |
| Engine Speed | 3,600 RPM |
| Running Wattage - Diesel | Not Applicable |
| Transfer Switch Coverage | Whole House |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Fuel NPT Pipe Connection Size | 3/4 in |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Run Time @ Full Load - Diesel | Not Applicable |
| Noise Level | 67 dBA |
| Starter Type | 12V DC |
| Includes Battery | No |
| Service Rated Transfer Switch | No |
| Engine Displacement | 999 cc |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Running Wattage - Natural Gas (NG) | 19.5 kW |
| Battery Group Number | Group 26R |
| Natural Gas (NG) Consumption @ Full Load | 306 cfh |
| Natural Gas (NG) Consumption @ 1/2 Load | 184 cfh |
| Minimum Fuel Pressure - Natural Gas (NG) | 11 in wc |
| Maximum Fuel Pressure - Natural Gas (NG) | 14 in wc |
| Rated Current @ 240V AC - Propane (LPG) | 91.7 A |
| Propane (LPG) Consumption @ 1/2 Load | 2.53 gph |
| 12V DC Battery Charger | No |
| Exercise Cycle Interval | 7 day |
| Propane (LPG) Consumption @ Full Load | 142 cfh |
| Wi-Fi Equipped | Yes |
| Running Wattage - Propane (LPG) | 22 kW |
| Transfer Switch Current Rating | Not Applicable |
| Rated Current @ 120V AC - Propane (LPG) | Not Applicable |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Manufacturer Warranty | 5 yr |
| Safety Features | Automatic Voltage Regulator (AVR), Fault Indicator Lights, High Temperature Alarm, Low Coolant Level Alarm, Low Oil Warning, Over Speed Shutdown, Overcrank Protection, Run Time Hour Meter |
| Package Quantity | 1 |
