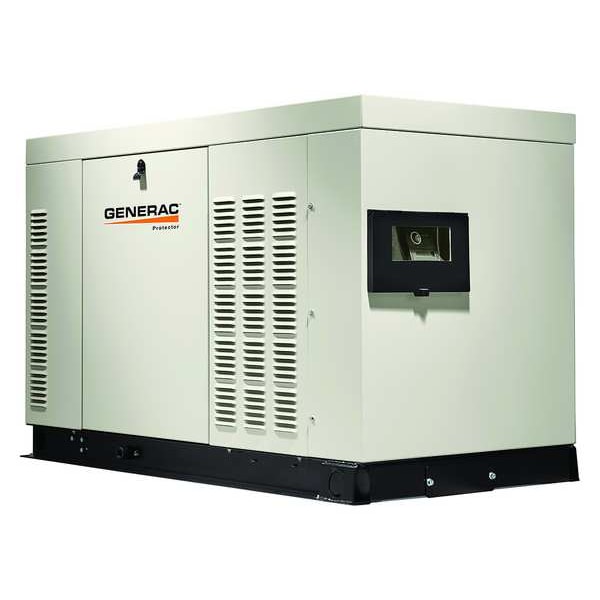

Automatic Standby Generator, Single Phase, 30kW LP/30kW NG, Liquid Cooled
| Item | Automatic Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Single |
| Transfer Switch Included | No |
| Amps | 125 |
| Rated Voltage | 120/240V AC |
| Generator Voltage | 120V AC/240V AC |
| Engine Cooling | Liquid |
| Standby Power Rating | 30kW, 30kW LP NG |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | No |
| LP Consumption @ Half Load | 3.5 gph |
| Power Factor | 1 |
| Hz | 60 Hz |
| Width | 29 in |
| Over Speed Shutdown | No |
| kVA Rating | 38 kVA |
| NG Consumption @ Half Load | 320 cu ft/hr |
| Fault Indicator Lights | Yes |
| 12VDC Battery Charger | Yes |
| Height | 29-11/16 in |
| Low Coolant Level Alarm | yes |
| Repeat of Exercise Cycle | 7 day |
| kW | 30 LP/30 NG |
| Standards | CA/MA, CSA Certified, EGSA, EPA, NEMA, UL 2200 |
| Engine (Block Heater) | Optional |
| Fuel NPT Pipe Connection Sz. | 3/4 in |
| Automatic Volts Regulation | Yes |
| Includes | Isochronous Electric Governor, Smart Battery Charger, Two Line LCD Multilingual Digital Evolution Controller |
| Enclosure Material | Aluminum |
| Engine Block Heater | Optional |
| Engine RPM | 3,600 RPM |
| Battery Requirements | 26R, 525 CCA |
| Length | 62-3/16 in |
| Battery Included | No |
| Min. Gas Pressure @ Generator (In WC) | 5 to 14 |
| Generator Mfr. Warranty Details | 5 yr |
| High Temp. Alarm | Yes |
| Run Time Hour Meter | Yes |
| Main Circuit Breaker | 150 A |
| Low Oil Pressure Alarm | Yes |
| Over Crank Protection | Yes |
| Fuel Tank Capacity | Not Applicable |
| Engine Size | 1.5 L |
| Length (Straight Wireway) | 62-15/16 in |
| Color | Grey |
| Rated Watts | 30,000 |
| Weight | 807 lb |
| Frame Material | Steel |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Transfer Switch Current Rating | Not Applicable |
| Includes Battery | No |
| Running Wattage - Propane (LPG) | 30 kW |
| Natural Gas (NG) Consumption @ Full Load | 492 cfh |
| Overall Length | 62-3/16 in |
| Manufacturer Warranty | 5 yr |
| Minimum Fuel Pressure - Natural Gas (NG) | 5 in wc |
| Engine Oil Capacity | 4 qt |
| Exercise Cycle Duration | 90 sec |
| Overall Height | 29-11/16 in |
| Engine Brand | Generac |
| Rated Current @ 240V AC - Natural Gas (NG) | 125 A |
| Service Rated Transfer Switch | No |
| Running Wattage - Diesel | Not Applicable |
| Engine Speed | 3,600 RPM |
| Exercise Cycle Interval | 7 day |
| Run Time @ Full Load - Diesel | Not Applicable |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Propane (LPG) Consumption @ Full Load | 197 cfh |
| Carbon Monoxide Protection | No Carbon Monoxide Detection |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Natural Gas (NG) Consumption @ 1/2 Load | 320 cfh |
| Starter Type | 12V |
| Noise Level | 73 dBA |
| Fuel NPT Pipe Connection Size | 3/4 in |
| Running Wattage - Natural Gas (NG) | 30 kW |
| Overall Width | 28-7/8 in |
| Apparent Power Rating | 38 kVA |
| Wi-Fi Equipped | Yes |
| Rated Current @ 240V AC - Propane (LPG) | 125 A |
| 12V DC Battery Charger | Yes |
| Safety Features | Low Oil Shutdown, Automatic Voltage Regulator (AVR), Common External Fault Capability, Failure to Transfer Protection, Governor Failure Protection, High Temperature Shutdown, Incorrect Wiring Protection, Internal Fault Protection, Low Battery Protection, Over Speed Shutdown, Overcrank Protection, Safety Fused |
| Propane (LPG) Consumption @ 1/2 Load | 128 cfh |
| Battery CCA Rating | 525 CCA |
| Rated Current @ 120V AC - Natural Gas (NG) | 125 A |
| Rated Frequency | 60 Hz |
| Engine Type | 4-Cycle |
| Battery Group Number | Group 26 |
| Rated Current @ 120V AC - Propane (LPG) | 125 A |
| Maximum Fuel Pressure - Natural Gas (NG) | 14 in wc |
| Package Quantity | 1 |
