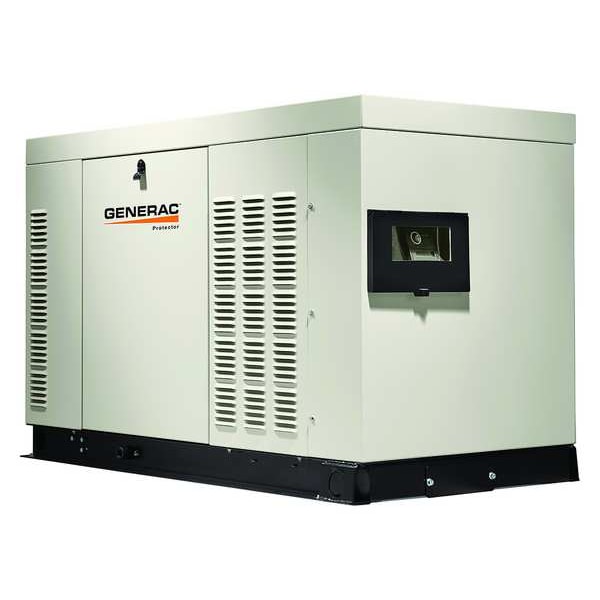

Automatic Standby Generator, Three Phase, 25kW LP/25kW NG, Liquid Cooled
| Item | Automatic Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Three |
| Transfer Switch Included | No |
| Amps | 75 |
| Rated Voltage | 120/240V AC |
| Generator Voltage | 120V AC/240V AC |
| Engine Cooling | Liquid |
| Standby Power Rating | 25kW LP / 25kW NG |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | No |
| Fuel NPT Pipe Connection Sz. | 3/4 in |
| Power Factor | 0.8 |
| Enclosure Material | Aluminum |
| Length | 62-3/16 in |
| Low Coolant Level Alarm | yes |
| Standards | CA/MA, CSA Certified, EGSA, EPA, NEMA, UL 2200 |
| Automatic Volts Regulation | Yes |
| Engine Block Heater | Optional |
| kVA Rating | 31 kVA |
| Low Oil Pressure Alarm | Yes |
| NG Consumption @ Half Load | 297 cu ft/hr |
| Battery Included | No |
| Fuel Tank Capacity | Not Applicable |
| kW | 25 LP/25 NG |
| Generator Mfr. Warranty Details | 5 yr |
| Engine RPM | 3,600 RPM |
| Battery Requirements | 26R, 525 CCA |
| Repeat of Exercise Cycle | 7 day |
| Engine (Block Heater) | Optional |
| Hz | 60 Hz |
| Over Crank Protection | Yes |
| Main Circuit Breaker | Yes |
| Min. Gas Pressure @ Generator (In WC) | 5 to 14 |
| Over Speed Shutdown | No |
| 12VDC Battery Charger | Yes |
| Width | 29 in |
| Includes | Isochronous Electric Governor, Smart Battery Charger, Two Line LCD Multilingual Digital Evolution Controller |
| Height | 29-11/16 in |
| Fault Indicator Lights | Yes |
| Engine Size | 1.5 L |
| Run Time Hour Meter | Yes |
| High Temp. Alarm | Yes |
| LP Consumption @ Half Load | 3.3 gph |
| Length (Straight Wireway) | 62-15/16 in |
| Color | Grey |
| Weight | 777 lb |
| Frame Material | Steel |
| Rated Watts | 25,000 |
| Overall Width | 28-7/8 in |
| Battery CCA Rating | 525 CCA |
| Run Time @ Full Load - Diesel | Not Applicable |
| 12V DC Battery Charger | Yes |
| Natural Gas (NG) Consumption @ Full Load | 430 cfh |
| Exercise Cycle Interval | 7 day |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Minimum Fuel Pressure - Natural Gas (NG) | 5 in wc |
| Includes Battery | No |
| Fuel NPT Pipe Connection Size | 3/4 in |
| Noise Level | 72 dBA |
| Manufacturer Warranty | 5 yr |
| Overall Height | 29-11/16 in |
| Service Rated Transfer Switch | No |
| Engine Speed | 3,600 RPM |
| Engine Oil Capacity | 4 qt |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Engine Type | 4-Cycle |
| Wi-Fi Equipped | Yes |
| Rated Frequency | 60 Hz |
| Safety Features | Low Oil Shutdown, Automatic Voltage Regulator (AVR), Common External Fault Capability, Failure to Transfer Protection, Governor Failure Protection, High Temperature Shutdown, Incorrect Wiring Protection, Internal Fault Protection, Low Battery Protection, Over Speed Shutdown, Overcrank Protection, Safety Fused |
| Battery Group Number | Group 26 |
| Rated Current @ 120V AC - Propane (LPG) | 75 A |
| Starter Type | 12V |
| Exercise Cycle Duration | 90 sec |
| Running Wattage - Diesel | Not Applicable |
| Propane (LPG) Consumption @ 1/2 Load | 119 gph |
| Running Wattage - Propane (LPG) | 25 kW |
| Engine Brand | Generac |
| Maximum Fuel Pressure - Natural Gas (NG) | 14 in wc |
| Rated Current @ 120V AC - Natural Gas (NG) | 75 A |
| Running Wattage - Natural Gas (NG) | 25 kW |
| Carbon Monoxide Protection | No Carbon Monoxide Detection |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Natural Gas (NG) Consumption @ 1/2 Load | 297 cfh |
| Transfer Switch Current Rating | Not Applicable |
| Rated Current @ 240V AC - Propane (LPG) | 75 A |
| Apparent Power Rating | 31 kVA |
| Propane (LPG) Consumption @ Full Load | 172 gph |
| Overall Length | 62-3/16 in |
| Rated Current @ 240V AC - Natural Gas (NG) | 75 A |
| Package Quantity | 1 |
