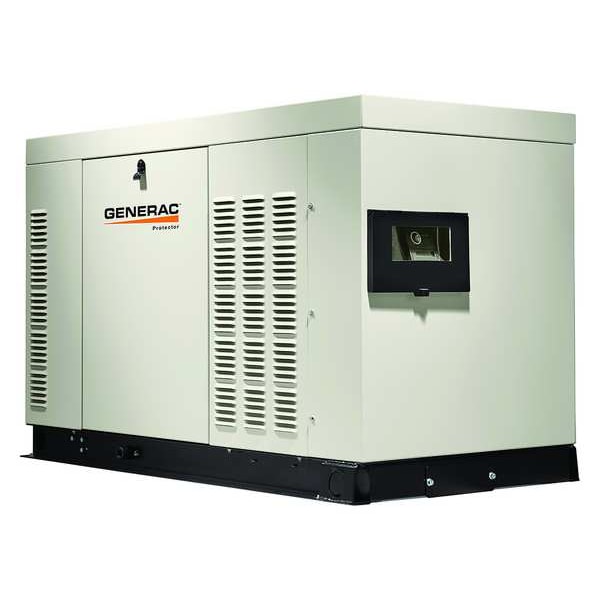

Automatic Standby Generator, Three Phase, 30kW LP/30kW NG, Liquid Cooled
| Item | Automatic Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Three |
| Transfer Switch Included | No |
| Amps | 104 |
| Rated Voltage | 120/208V AC |
| Generator Voltage | 120V AC/208V AC |
| Engine Cooling | Liquid |
| Standby Power Rating | 30kW, 30kW LP NG |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | No |
| Battery Requirements | 26R, 525 CCA |
| Min. Gas Pressure @ Generator (In WC) | 5 to 14 |
| Fuel NPT Pipe Connection Sz. | 3/4 in |
| Length | 62-3/16 in |
| Fuel Tank Capacity | Not Applicable |
| Over Speed Shutdown | No |
| Width | 29 in |
| Standards | CA/MA, CSA Certified, EGSA, EPA, NEMA, UL 2200 |
| Engine Size | 1.5 L |
| Low Coolant Level Alarm | yes |
| NG Consumption @ Half Load | 320 cu ft/hr |
| Power Factor | 0.8 |
| Fault Indicator Lights | Yes |
| 12VDC Battery Charger | Yes |
| Hz | 60 Hz |
| Engine Block Heater | Optional |
| Battery Included | No |
| Height | 29-11/16 in |
| kW | 30 LP/30 NG |
| LP Consumption @ Half Load | 3.5 gph |
| Repeat of Exercise Cycle | 7 day |
| kVA Rating | 38 kVA |
| Includes | Isochronous Electric Governor, Smart Battery Charger, Two Line LCD Multilingual Digital Evolution Controller |
| Engine (Block Heater) | Optional |
| Generator Mfr. Warranty Details | 5 yr |
| Automatic Volts Regulation | Yes |
| Low Oil Pressure Alarm | Yes |
| Over Crank Protection | Yes |
| Run Time Hour Meter | Yes |
| Engine RPM | 3,600 RPM |
| Main Circuit Breaker | 125 A |
| High Temp. Alarm | Yes |
| Enclosure Material | Aluminum |
| Length (Straight Wireway) | 62-15/16 in |
| Frame Material | Steel |
| Weight | 807 lb |
| Rated Watts | 30,000 |
| Color | Grey |
| Overall Width | 28-7/8 in |
| Exercise Cycle Interval | 7 day |
| Rated Frequency | 60 Hz |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Starter Type | 12V |
| Natural Gas (NG) Consumption @ 1/2 Load | 320 cfh |
| Running Wattage - Propane (LPG) | 30 kW |
| Includes Battery | No |
| Transfer Switch Current Rating | Not Applicable |
| Maximum Fuel Pressure - Natural Gas (NG) | 14 in wc |
| Fuel NPT Pipe Connection Size | 3/4 in |
| Rated Current @ 120V AC - Natural Gas (NG) | 104 A |
| Running Wattage - Diesel | Not Applicable |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Safety Features | Low Oil Shutdown, Automatic Voltage Regulator (AVR), Common External Fault Capability, Failure to Transfer Protection, Governor Failure Protection, High Temperature Shutdown, Incorrect Wiring Protection, Internal Fault Protection, Low Battery Protection, Over Speed Shutdown, Overcrank Protection, Safety Fused |
| Rated Current @ 120V AC - Propane (LPG) | 104 A |
| Run Time @ Full Load - Diesel | Not Applicable |
| Wi-Fi Equipped | Yes |
| Engine Brand | Generac |
| Engine Type | 4-Cycle |
| Exercise Cycle Duration | 90 sec |
| Overall Length | 62-3/16 in |
| 12V DC Battery Charger | Yes |
| Rated Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Minimum Fuel Pressure - Natural Gas (NG) | 5 in wc |
| Apparent Power Rating | 38 kVA |
| Running Wattage - Natural Gas (NG) | 30 kW |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Propane (LPG) Consumption @ 1/2 Load | 128 cfh |
| Overall Height | 29-11/16 in |
| Service Rated Transfer Switch | No |
| Manufacturer Warranty | 5 yr |
| Engine Oil Capacity | 4 qt |
| Engine Speed | 3,600 RPM |
| Battery CCA Rating | 525 CCA |
| Propane (LPG) Consumption @ Full Load | 197 cfh |
| Natural Gas (NG) Consumption @ Full Load | 492 cfh |
| Carbon Monoxide Protection | No Carbon Monoxide Detection |
| Battery Group Number | Group 26 |
| Noise Level | 73 dBA |
| Package Quantity | 1 |
