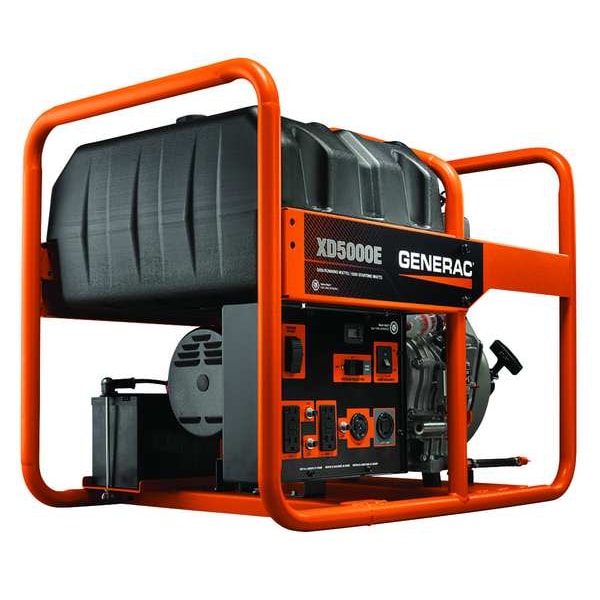

Portable Generator, Diesel, 5,000 W Rated, 5,500 W Surge, Electric, Recoil Start, 120/240V AC
| Engine Brand | Yanmar |
|---|---|
| Generator Engine Brand | Generac |
| Item | Portable Generator |
| Fuel Type | Diesel |
| Generator Fuel Type | Diesel |
| Generator Rated Watts | 5,000 W |
| Surge Watts | 5,500 W |
| Rated Voltage | 120/240V AC |
| Generator Voltage | 120/240V AC |
| Starter Type | Recoil, Electric |
| Generator Starter Type | Recoil, Electric |
| Generator Amps | 41.7/20.8 |
| Generator Run Time @ 1/2 Load | 32 hr 24 min |
| Weight | 252 lb |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | Yes |
| Parallel Configuration Capable | No |
| Full Power Switch | No |
| Generator Mfr. Warranty Details | 2 yr |
| Engine Alternator | Brush |
| Wheel Kit Included | No |
| Includes | Handle, Bottle of Oil, Oil Funnel |
| Engine Displacement | 435 cc |
| Generator Outlets | 5-20R 120VAC Duplex GFCI (1), L5-30R 120VAC Locking Receptacle (1), L14-30R 120/240VAC Locking Receptacle (1) |
| Series | XD5000E |
| Low Oil Shut Down | Yes |
| Length | 33-5/64 in |
| Run Time @ Full Load | 16 hr 12 min |
| Portable Generator Technology | Conventional |
| Generator Height | 25-39/64 in |
| Run Time Hour Meter | No |
| Fuel Tank Capacity | 12 gal |
| Length (Straight Wireway) | 33-1/16 in |
| Circuit Breakers Included | (1) 23 A (Two-Pole Main Circuit Breaker), (1) 30 A (Push Button Circuit Breaker), (2) 20 A (1P Push Button Circuit Breakers) |
| Wheel Size | Not Applicable |
| Includes Fuel Gauge | Yes |
| Engine Oil Capacity | 1.7 qt |
| Rated Current @ 120V AC - Propane (LPG) | Not Applicable |
| Cylinder Material | Cast Iron |
| Run Time @ Full Load - Propane (LPG) | Not Applicable |
| Air Cleaner Type | Single Element |
| Manufacturer Warranty | 2 yr |
| Rated Current @ 240V AC - Gasoline/Diesel | 20.8 A |
| Starting Wattage - Natural Gas (NG) | Not Applicable |
| Starting Wattage - Gasoline/Diesel | 5,500 W |
| Starting Wattage - Propane (LPG) | Not Applicable |
| Running Wattage - Natural Gas (NG) | Not Applicable |
| Inverter Frame Type | Not Applicable |
| Circuit Breaker | No |
| Rated Current @ 120V AC - Gasoline/Diesel | 41.7 A |
| Standards | EPA |
| Engine Type | Air Cooled 4-Cycle |
| Rated Frequency | 60 Hz |
| Maximum Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Overall Width | 22-1/2 in |
| Maximum Current @ 240V AC - Propane (LPG) | Not Applicable |
| Rated Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Running Wattage - Propane (LPG) | Not Applicable |
| Handle Type | Folding |
| Overall Length | 33-1/8 in |
| Includes GFCI Outlets | Yes |
| Running Wattage - Gasoline/Diesel | 5,000 W |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Run Time @ Full Load - Gasoline/Diesel | 16 hr 12 min |
| Safety Features | Low Oil Shutdown |
| Includes Wheel Kit | No |
| Carbon Monoxide Protection | No Carbon Monoxide Detection |
| Wheel Type | Not Applicable |
| Extended Length | 35-3/4 in |
| Overall Height | 25-5/8 in |
| Engine Oil Type | SAE30 |
| Run Time @ 1/2 Load - Propane (LPG) | Not Applicable |
| Maximum Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Run Time @ 1/2 Load - Gasoline/Diesel | 32 hr 24 min |
| Generator Technology | Conventional |
| Rated Current @ 240V AC - Propane (LPG) | Not Applicable |
| Maximum Current @ 120V AC - Propane (LPG) | Not Applicable |
| Run Time @ 1/4 Load - Propane (LPG) | Not Applicable |
| Outlets Included | 5-20R GFCI Duplex, L14-30R, L5-30R |
| Width | 22-1/2 in |
| Package Quantity | 1 |
