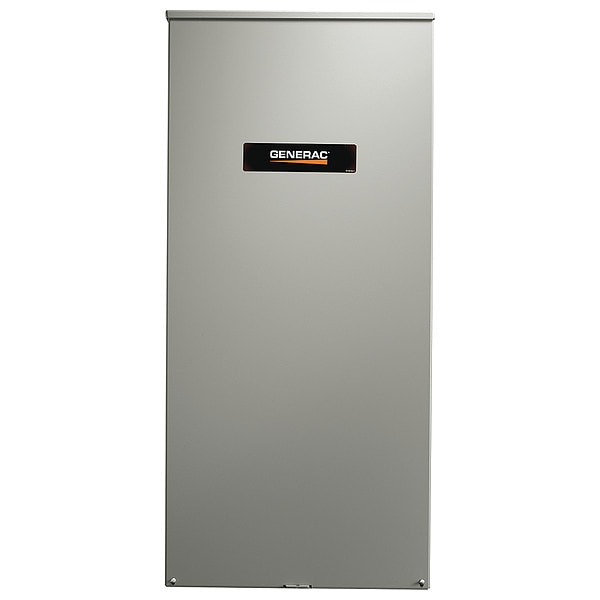

Smart Switch 200 Amp Service Rated 120/240 1-Phase NEMA 3R
| Item | Automatic Transfer Switch |
|---|---|
| Load Transition Type | Open Transition |
| Height | 30 in |
| Time Delay Neutral | No |
| NEMA Enclosure Type | 3R |
| Width | 13-1/2 in |
| Automatic Exerciser | Yes |
| Voltage | 240 V |
| Max. Amps | 200 |
| Max. Wattage | 48,000 |
| Lockable | No |
| 2-Wire Start | No |
| For Use With | QT02224ANAX, QT02515ANSX, QT02724ANAX, QT03015ANSX, QT03624ANAX, QT04524ANSC, QT04524ANSX, QT04854ANAC, QT04854ANAX, QT07068ANAC, QT07068ANAX, QT07068AVAC, QT07068AVAX, QT08046ANAX, QT08046AVAX, QT10068ANAC, QT10068AVAC, QT13068ANAC, QT13068AVAC, QT15068ANAC, QT15068AVAC, RD01523ADAE, RD02023ADAE, RD03024ADAE, RD04834ADAE, RG02224AGAX, RG02224ANAX, RG02515ANAX, RG02515ANSX, RG02724ANAX, RG03015ANAX, RG03015ANSX, RG03224ANAX, RG03624ANAX, RG03624ANSX, RG03824ANAX, RG04524ANAC, RG04524ANAX, RG04524ANSC, RG04524ANSX, RG04854ANAC, RG04854ANAX, RG04854AVAC, RG04854AVAX, RG06024ANAX, RG06024ANSX, RG06024AVAX, RG06024AVSX |
| Sensing Line Failure | 0.6 |
| Phase | 1 |
| Installation | Standard |
| Warranty | 2 yr |
| Time Delay Retransfer | Yes |
| Sensing Under Volts | 0.6 |
| Repeat of Exercise Cycle | 7 |
| Manual Override | Yes |
| Max. No. of Tandem Breakers | 0 |
| Enclosure Material | Aluminum |
| Max. Wire Size | 400 MCM |
| Time Delay Transfer | yes |
| Color | Gray |
| Depth | 7 in |
| Sensing Generator Hz | No |
| Standards | cULus Listed, UL Listed |
| Maximum Wattage | 48,000 W |
| Engine Cooldown Timer | 60 sec |
| Maximum Wire Size | 250 MCM |
| Compatible with Manufacturer Model Number | QT02224ANAX, QT02515ANSX, QT02724ANAX, QT03015ANSX, QT03624ANAX, QT04524ANSC, QT04524ANSX, QT04854ANAC, QT04854ANAX, QT07068ANAC, QT07068ANAX, QT07068AVAC, QT07068AVAX, QT08046ANAX, QT08046AVAX, QT10068ANAC, QT10068AVAC, QT13068ANAC, QT13068AVAC, QT15068ANAC, QT15068AVAC, RD01523ADAE, RD02023ADAE, RD03024ADAE, RD04834ADAE, RG02224AGAX, RG02224ANAX, RG02515ANAX, RG02515ANSX, RG02724ANAX, RG03015ANAX, RG03015ANSX, RG03224ANAX, RG03624ANAX, RG03624ANSX, RG03824ANAX, RG04524ANAC, RG04524ANAX, RG04524ANSC, RG04524ANSX, RG04854ANAC, RG04854ANAX, RG04854AVAC, RG04854AVAX, RG06024ANAX, RG06024ANSX, RG06024AVAX, RG06024AVSX |
| Overall Height | 30 in |
| Manufacturer Warranty | 5 yr |
| Overall Width | 13-1/2 in |
| Service Rated Transfer Switch | Yes |
| Exercise Cycle Interval | 7 day |
| Compatible with Brand | Generac |
| Current Rating | 200 A |
| Re-Transfer Time Delay | 15 sec |
| Standby Voltage Sensor | 65% for 5 sec |
| Transfer to Generator Start Time Delay | 10 sec |
| Engine Warmup Delay | 5 sec |
| Withstand Current Rating | 22,000 A |
| Minimum Wire Size | 6 AWG |
| NEMA Enclosure Rating | 3 R |
| Overall Depth | 6-5/16 in |
| Rated Voltage | 120/240V AC |
| Compatible with Series | RXS |
| ETL Safety Listing | Yes |
| UL Safety Listing | Yes |
| Package Contents | transfer switch |
| Compatible with Mfr. Model No. | QT02224ANAX, QT02515ANSX, QT02724ANAX, QT03015ANSX, QT03624ANAX, QT04524ANSC, QT04524ANSX, QT04854ANAC, QT04854ANAX, QT07068ANAC, QT07068ANAX, QT07068AVAC, QT07068AVAX, QT08046ANAX, QT08046AVAX, QT10068ANAC, QT10068AVAC, QT13068ANAC, QT13068AVAC, QT15068ANAC, QT15068AVAC, RD01523ADAE, RD02023ADAE, RD03024ADAE, RD04834ADAE, RG02224AGAX, RG02224ANAX, RG02515ANAX, RG02515ANSX, RG02724ANAX, RG03015ANAX, RG03015ANSX, RG03224ANAX, RG03624ANAX, RG03624ANSX, RG03824ANAX, RG04524ANAC, RG04524ANAX, RG04524ANSC, RG04524ANSX, RG04854ANAC, RG04854ANAX, RG04854AVAC, RG04854AVAX, RG06024ANAX, RG06024ANSX, RG06024AVAX, RG06024AVSX |
| For Use with Mfr Model Number | QT02224ANAX, QT02515ANSX, QT02724ANAX, QT03015ANSX, QT03624ANAX, QT04524ANSC, QT04524ANSX, QT04854ANAC, QT04854ANAX, QT07068ANAC, QT07068ANAX, QT07068AVAC, QT07068AVAX, QT08046ANAX, QT08046AVAX, QT10068ANAC, QT10068AVAC, QT13068ANAC, QT13068AVAC, QT15068ANAC, QT15068AVAC, RD01523ADAE, RD02023ADAE, RD03024ADAE, RD04834ADAE, RG02224AGAX, RG02224ANAX, RG02515ANAX, RG02515ANSX, RG02724ANAX, RG03015ANAX, RG03015ANSX, RG03224ANAX, RG03624ANAX, RG03624ANSX, RG03824ANAX, RG04524ANAC, RG04524ANAX, RG04524ANSC, RG04524ANSX, RG04854ANAC, RG04854ANAX, RG04854AVAC, RG04854AVAX, RG06024ANAX, RG06024ANSX, RG06024AVAX, RG06024AVSX |
| Package Quantity | 1 |
