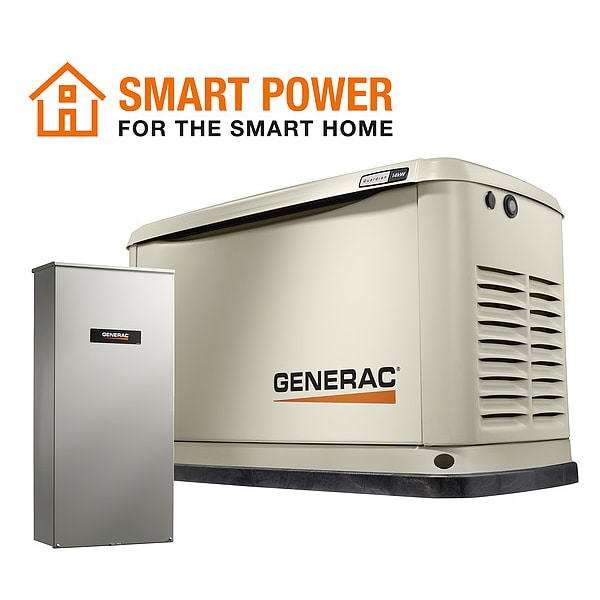

Standby Generator, Natural Gas/Propane, Single Phase, 14kW, Air Cooled
| Item | Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Single |
| Transfer Switch Included | Yes |
| Amps | 58.3 |
| Rated Voltage | 240V AC |
| Generator Voltage | 120V AC/240V AC |
| Engine Cooling | Air |
| Standby Power Rating | 14kW |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | Yes |
| Width | 25 in |
| Hz | 60 Hz |
| Generator Mfr. Warranty Details | 5 yr |
| Battery Included | No |
| Over Speed Shutdown | Yes |
| Low Oil Pressure Alarm | Yes |
| Length | 48 in |
| NG Consumption @ Half Load | 195 cu ft/hr |
| Sound Level dBA | 65 dBA |
| Enclosure Material | Aluminum |
| Engine RPM | 3,600 RPM |
| Height | 29 in |
| Standards | UL 142/ULC SG01, UL/CUL 2200 |
| Fuel Tank Capacity | Not Applicable |
| Includes | 200A Whole Home Transfer Switch, Electronic Governor, Flexible Fuel Line Connector, Sound Attenuated Enclosure, Standard Wi-Fi Connectivity, System Status and Maintenance Interval LED Indicators, Two Line LCD Multilingual Digital Evolution Controller |
| kVA Rating | 14 kVA |
| Engine Size | 816 cc |
| 12VDC Battery Charger | Yes |
| Battery Requirements | 540 CCA or 650 CCA |
| Over Crank Protection | Yes |
| High Temp. Alarm | Yes |
| Main Circuit Breaker | Yes |
| LP Consumption @ Half Load | 1.81 gph |
| Run Time Hour Meter | Yes |
| Automatic Volts Regulation | Yes |
| Repeat of Exercise Cycle | 2 wk |
| Power Factor | 1 |
| Rated Watts | 14,000 |
| Frame Material | Aluminum |
| Color | Bisque |
| Weight | 446 lb |
| Rated Current @ 240V AC - Propane (LPG) | 58.3 A |
| Includes Battery | No |
| Apparent Power Rating | 14 kVA |
| Manufacturer Warranty | 5 yr |
| Wi-Fi Equipped | Yes |
| Propane (LPG) Consumption @ Full Load | 54 cfh |
| Overall Width | 25 in |
| Engine Brand | Generac |
| Battery CCA Rating | 540/650 CCA |
| Rated Current @ 120V AC - Propane (LPG) | Not Applicable |
| Propane (LPG) Consumption @ 1/2 Load | 1.81 gph |
| Run Time @ Full Load - Diesel | Not Applicable |
| 12V DC Battery Charger | Yes |
| Safety Features | Automatic Voltage Regulator (AVR), High Temperature Alarm, Low Oil Warning, Over Speed Shutdown, Overcrank Protection, Run Time Hour Meter |
| Engine Speed | 3,600 RPM |
| Natural Gas (NG) Consumption @ 1/2 Load | 195 cfh |
| Overall Length | 48 in |
| Carbon Monoxide Protection | No Carbon Monoxide Detection |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Starter Type | 12V DC |
| Service Rated Transfer Switch | Yes |
| Engine Displacement | 816 cc |
| Running Wattage - Propane (LPG) | 14 kW |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Rated Current @ 240V AC - Natural Gas (NG) | 58.3 A |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Overall Height | 29 in |
| Exercise Cycle Interval | 2 wk |
| Noise Level | 65 dBA |
| Transfer Switch Current Rating | 200 A |
| Running Wattage - Natural Gas (NG) | 14 kW |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Transfer Switch Coverage | Whole House |
| Running Wattage - Diesel | Not Applicable |
| Natural Gas (NG) Consumption @ Full Load | 127 cfh |
| Rated Frequency | 60 Hz |
| Package Quantity | 1 |
