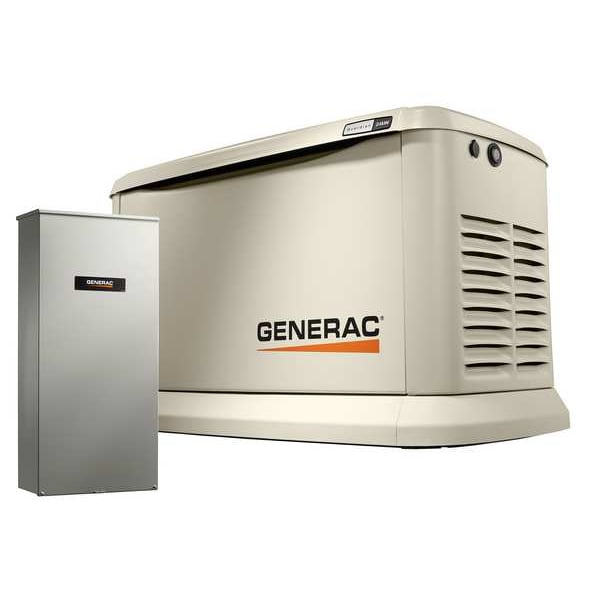

Standby Generator, Natural Gas/Propane, Single Phase, 24kW LP/21kW NG, Air Cooled
| Item | Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Single |
| Transfer Switch Included | Yes |
| Amps | LP 100/NG 87.5 |
| Rated Voltage | 240V AC |
| Generator Voltage | 120V AC/240V AC |
| Engine Cooling | Air |
| Standby Power Rating | 24kW LP / 21kW NG |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | Yes |
| Engine Block Heater | Not Available |
| Hz | 60 Hz |
| High Temp. Alarm | Yes |
| Battery Included | No |
| Run Time Hour Meter | Yes |
| Fuel Tank Capacity | Not Applicable |
| Engine RPM | 3,600 RPM |
| Low Coolant Level Alarm | No |
| Automatic Volts Regulation | Yes |
| Engine Size | 0.999 L |
| kVA Rating | 24 kVA |
| Includes | Transfer Switch |
| Generator Mfr. Warranty Details | 5 yr |
| Width | 25 in |
| Main Circuit Breaker | Yes |
| Enclosure Material | Aluminum |
| LP Consumption @ Half Load | 92 cfh |
| Sound Level dBA | 67 dBA |
| Power Factor | 1 |
| 12VDC Battery Charger | Yes |
| Min. Gas Pressure @ Generator (In WC) | 10 to 12 wc LP; 3.5 to 5 wc in NG |
| NG Consumption @ Half Load | 203 cu ft/hr |
| Fault Indicator Lights | Yes |
| Standards | UL 142/ULC SG01, UL/CUL 2200 |
| Battery Requirements | 26R, 540 CCA, 35AGM, 650 CCA |
| Over Crank Protection | Yes |
| Length | 48 in |
| Low Oil Pressure Alarm | Yes |
| Height | 29 in |
| Frame Material | Aluminum |
| Weight | 514 lb |
| Rated Watts | 24,000 |
| Color | Beige |
| Transfer Switch Current Rating | 200 A |
| Noise Level | 67 dBA |
| Natural Gas (NG) Consumption @ 1/2 Load | 203 cfh |
| Rated Current @ 240V AC - Propane (LPG) | 100 A |
| Overall Height | 29 in |
| 12V DC Battery Charger | Yes |
| Battery CCA Rating | 540/650 CCA |
| Minimum Fuel Pressure - Propane (LPG) | 10 in wc |
| Engine Speed | 3,600 RPM |
| Rated Current @ 240V AC - Natural Gas (NG) | 87.5 A |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Run Time @ Full Load - Diesel | Not Applicable |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Natural Gas (NG) Consumption @ Full Load | 306 cfh |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Propane (LPG) Consumption @ Full Load | 142 cfh |
| Propane (LPG) Consumption @ 1/2 Load | 92 cfh |
| Minimum Fuel Pressure - Natural Gas (NG) | 3.5 in wc |
| Starter Type | 12V DC |
| Apparent Power Rating | 24 kVA |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Transfer Switch Coverage | Whole House |
| Service Rated Transfer Switch | Yes |
| Running Wattage - Diesel | Not Applicable |
| Maximum Fuel Pressure - Propane (LPG) | 12 in wc |
| Wi-Fi Equipped | Yes |
| Engine Brand | Generac |
| Rated Frequency | 60 Hz |
| Includes Battery | No |
| Overall Length | 48 in |
| Manufacturer Warranty | 5 yr |
| Safety Features | Automatic Voltage Regulator (AVR), Fault Indicator Lights, High Temperature Alarm, Low Oil Warning, Overcrank Protection, Run Time Hour Meter |
| Running Wattage - Propane (LPG) | 24 kW |
| Overall Width | 25 in |
| Battery Group Number | Group 26R |
| Maximum Fuel Pressure - Natural Gas (NG) | 5 in wc |
| Rated Current @ 120V AC - Propane (LPG) | Not Applicable |
| Running Wattage - Natural Gas (NG) | 21 kW |
| Package Quantity | 1 |
