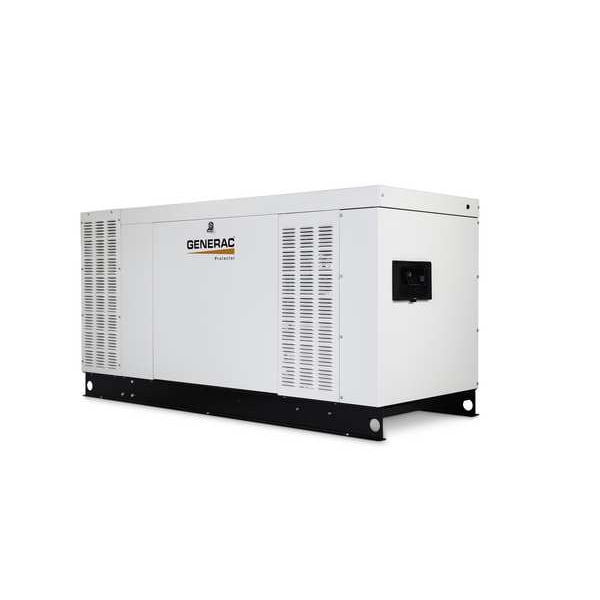

Standby Generator, Natural Gas/Propane, Three Phase, 75kW LP/80kW NG, Liquid Cooled
| Item | Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Three |
| Transfer Switch Included | No |
| Amps | LP 113/NG 120 |
| Rated Voltage | 277/480V AC |
| Generator Voltage | 277V AC/480V AC |
| Engine Cooling | Liquid |
| Standby Power Rating | 75kW LP NG, 80kW |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | No |
| Width | 38 in |
| kVA Rating | 80 kVA |
| Engine Block Heater | Optional |
| Engine RPM | 1,800 RPM |
| Low Coolant Level Alarm | No |
| 12VDC Battery Charger | Yes |
| NG Consumption @ Half Load | 534 cu ft/hr |
| Includes | Isochronous Electric Governor, Smart Battery Charger, Two Line LCD Multilingual Digital Evolution Controller |
| Min. Gas Pressure @ Generator (In WC) | 7 to 14 wc LP, 3.5 to 14 wc NG |
| Standards | CA/MA, cETLus, EPA, UL 2200 |
| Main Circuit Breaker | Yes |
| Enclosure Material | Aluminum |
| Height | 49 in |
| Fuel Tank Capacity | Not Applicable |
| Length | 97-1/2 in |
| Power Factor | 0.8 |
| High Temp. Alarm | Yes |
| Fault Indicator Lights | Yes |
| Sound Level dBA | 68 dBA |
| Generator Mfr. Warranty Details | 5 yr |
| Battery Included | No |
| Automatic Volts Regulation | Yes |
| Over Crank Protection | Yes |
| Low Oil Pressure Alarm | Yes |
| LP Consumption @ Half Load | 432 cfh |
| Battery Requirements | 27F, 725CCA |
| Hz | 60 Hz |
| Run Time Hour Meter | Yes |
| Engine Size | 4.5 L |
| Frame Material | Aluminum |
| Color | Bisque |
| Rated Watts | 80,000 |
| Weight | 2,022 lb |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Service Rated Transfer Switch | No |
| Run Time @ Full Load - Diesel | Not Applicable |
| Noise Level | 68 dBA |
| Exercise Cycle Duration | 90 sec |
| Natural Gas (NG) Consumption @ Full Load | 1,063 cfh |
| Propane (LPG) Consumption @ Full Load | 393.2 cfh |
| Exercise Cycle Interval | 7 day |
| Includes Battery | No |
| Starter Type | 12V |
| Engine Speed | 1,800 RPM |
| Engine Oil Capacity | 12 qt |
| Engine Brand | Generac |
| Rated Frequency | 60 Hz |
| Maximum Fuel Pressure - Propane (LPG) | 14 in wc |
| Run Time @ 1/2 Load - Diesel | Not Applicable |
| Manufacturer Warranty | 5 yr |
| Overall Height | 49 in |
| Wi-Fi Equipped | Yes |
| Rated Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| 12V DC Battery Charger | Yes |
| Running Wattage - Propane (LPG) | 75 kW |
| Engine Type | 4-Cycle |
| Overall Width | 38 in |
| Minimum Fuel Pressure - Natural Gas (NG) | 3.5 in wc |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Carbon Monoxide Protection | No Carbon Monoxide Detection |
| Minimum Fuel Pressure - Propane (LPG) | 7 in wc |
| Battery Group Number | Group 27F |
| Battery CCA Rating | 725 CCA |
| Running Wattage - Natural Gas (NG) | 80 kW |
| Natural Gas (NG) Consumption @ 1/2 Load | 534 cfh |
| Propane (LPG) Consumption @ 1/2 Load | 208.8 cfh |
| Safety Features | Low Oil Shutdown, Automatic Voltage Regulator (AVR), Failure to Transfer Protection, High Temperature Shutdown, Incorrect Wiring Protection, Low Battery Protection, Over Speed Shutdown, Overcrank Protection, Safety Fused |
| Running Wattage - Diesel | Not Applicable |
| Maximum Fuel Pressure - Natural Gas (NG) | 14 in wc |
| Transfer Switch Current Rating | Not Applicable |
| Overall Length | 97-1/2 in |
| Fuel NPT Pipe Connection Size | 1-1/4 in |
| Apparent Power Rating | 80 kVA |
| Package Quantity | 1 |
