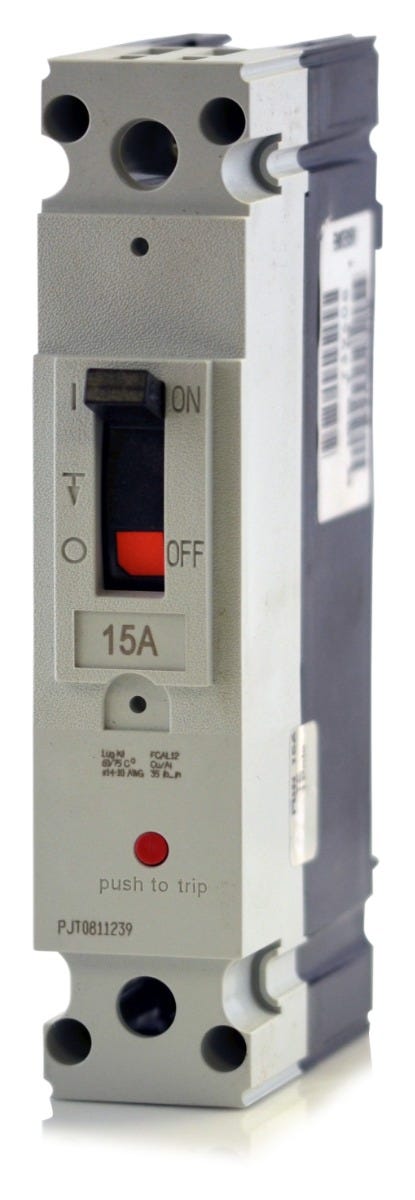

The General Electric FBN16TE015RV is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 600V. It has an interrupting rating of 65kAIC at 480V. The FBN16TE015RV has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | FBN |
| Amperage | 15 |
| Voltage | 600 |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 65kA@480V |
| Frame Type | FB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Length (in) | 9 |
| Width (in) | 3 |
| Height (in) | 4 |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Mpn | FBN16TE015RV |
| Upc | 783164394085 |
| Gtin | 783164394085 |
