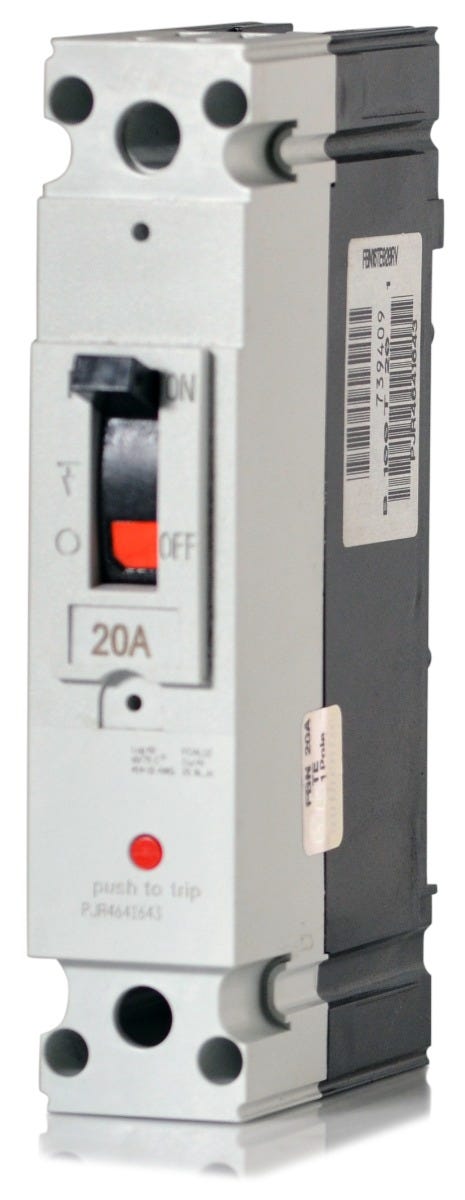

The General Electric FBN16TE020RV is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 600V. It has an interrupting rating of 65kA@480V. The FBN16TE020RV has a bolt-on connection type and includes LI - long time and instantaneous functions.
| Brand | General Electric |
|---|---|
| Series | FBN |
| Amperage | 20 |
| Voltage | 600 |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 65kA@480V |
| Frame Type | FB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Length (in) | 8.5 |
| Width (in) | 3.25 |
| Height (in) | 4.25 |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Mpn | FBN16TE020RV |
| Upc | 783164394092 |
| Gtin | 783164394092 |
