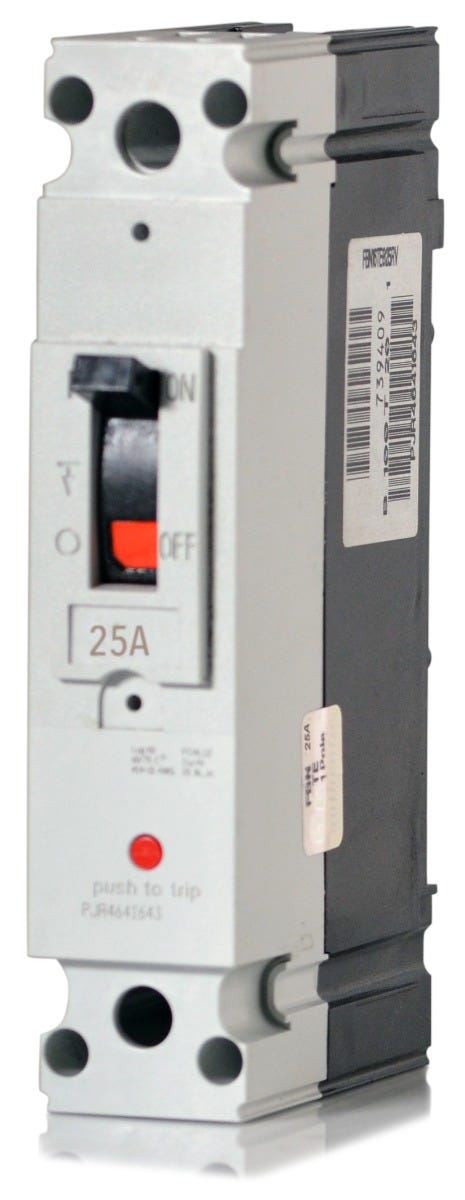

The General Electric FBN16TE025RV is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 25 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kA@480V. The FBN16TE025RV has a bolt-on connection type and includes LI - long time and instantaneous functions.
| Brand | General Electric |
|---|---|
| Series | FB100 |
| Amperage | 25 |
| Voltage | 600VAC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 65kA@480V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous |
| Terminal Connection | Load side lug |
| Mpn | FBN16TE025RV |
| Upc | 783164394108 |
