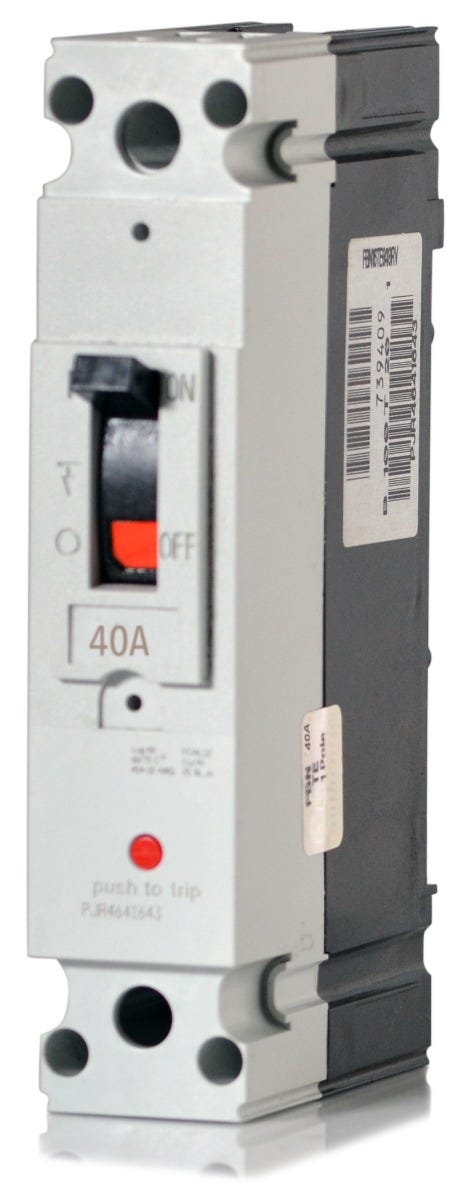

The General Electric FBN16TE040RV is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 600V. It has an interrupting rating of 65kAIC at 480V. The FBN16TE040RV has a bolt-on connection type and includes LI - long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | FBN |
| Amperage | 40 |
| Voltage | 600 |
| Poles | 1 |
| Phase | 1 |
| Approval | UL, CSA, NOM, IEC |
| Interrupting Rating | 65kA@480V |
| Frame Type | FB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Terminal Connection | Load side lug |
| Mpn | FBN16TE040RV |
