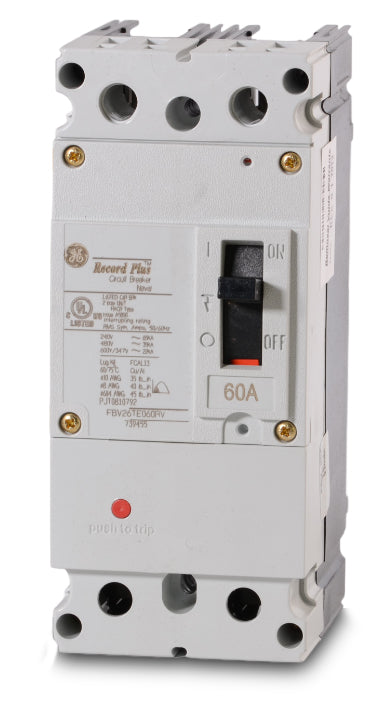

The General Electric FBV26TE060RV is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600V. It has an interrupting rating of 150kAIC at 480V. The FBV26TE060RV has a bolt-on connection type and includes LI - long-time and instantaneous functions.
| Brand | General Electric |
|---|---|
| Series | FBV |
| Amperage | 60 |
| Voltage | 600 |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 65 Kiloampere At 240 VAC, 35 Kiloampere At 480 VAC, 22 Kiloampere At 600 VAC Star/347 VAC |
| Frame Type | FB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Length (in) | 3.28 |
| Width (in) | 4.11 |
| Height (in) | 6.45 |
| Mpn | FBV26TE060RV |
| Upc | 783164394559 |
| Gtin | 783164394559 |
