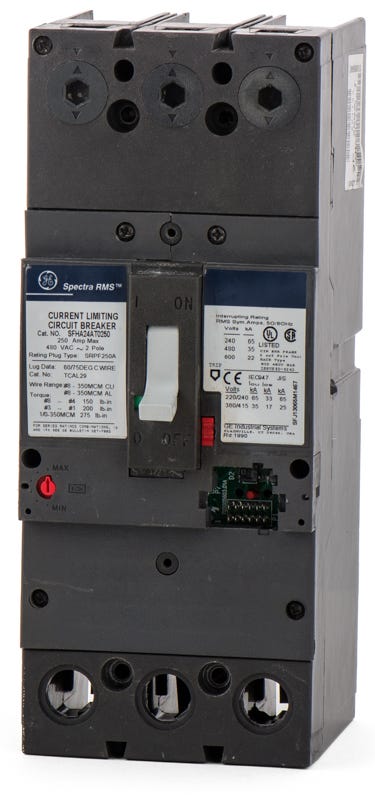

The General Electric SFHA24AT0250 is a 2 Pole solid state molded case circuit breaker with a current rating of 250 Amps and a voltage rating of 480/600VAC. It has an interrupting rating of 35kAIC at 480V. The SFHA24AT0250 has a bolt-on connection type and includes long-time, short-time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | Spectra |
| Amperage | 250 |
| Voltage | 480/600VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 35kAIC at 480V |
| Frame Type | SFHA |
| Connection Type | Bolt-On |
| Protection | Solid State |
| Functions | LSI - Long-Time, Short-Time and Instantaneous Trip |
| Mpn | SFHA24AT0250 |
| Upc | 783164211245 |
| Gtin | 783164211245 |
