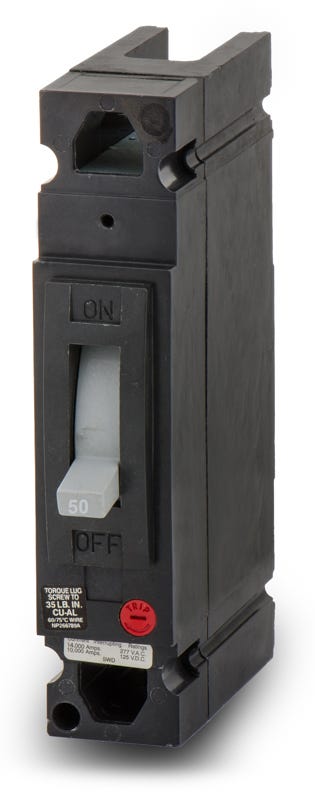

The General Electric TEB111050 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The TEB111050 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | TEB |
| Amperage | 50 |
| Voltage | 120V |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | TEB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Temperature Rating | 40 °C |
| Mpn | TEB111050 |
| Upc | 783164104097 |
| Gtin | 783164104097 |
