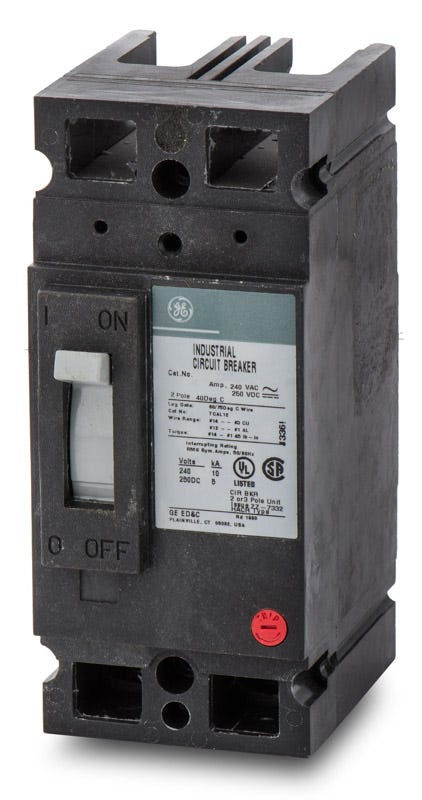

The General Electric TEB122030 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 240V. It has an interrupting rating of 10kAIC at 240V. The TEB122030 has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | E150 Line |
| Amperage | 30 |
| Voltage | 240V |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 10kAIC at 240V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | TEB122030 |
| Upc | 78316406856 |
| Gtin | 783164068566 |
