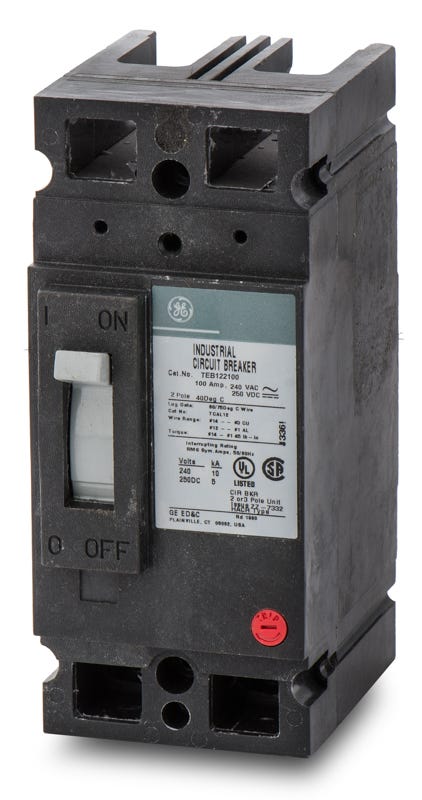

The General Electric TEB122100WL is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The TEB122100WL has a feed-thru connection type and includes LI - long-time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | E150 Line |
| Amperage | 100 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | TEB |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | TEB122100WL |
| Upc | 783164068757 |
| Gtin | 783164068757 |
