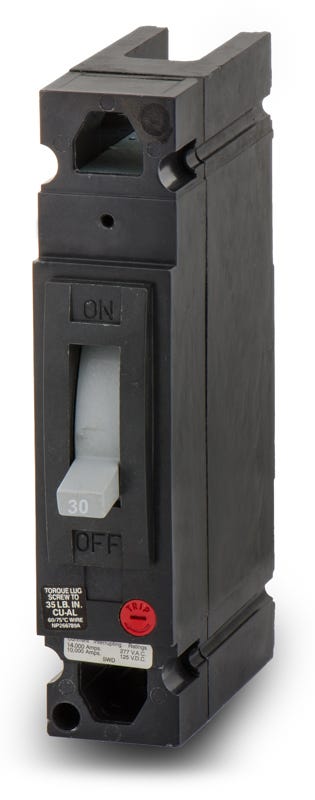

The General Electric TED113030 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 277VAC. It has an interrupting rating of 14kAIC at 277V. The TED113030 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | TED |
| Amperage | 30 |
| Voltage | 277VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 14kAIC at 277V |
| Frame Type | TED |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Temperature Rating | 40 °C |
| Breaker Feature | Standard Interrupting Capacity |
| Mpn | TED113030 |
| Upc | 783164082463 |
| Gtin | 783164082463 |
