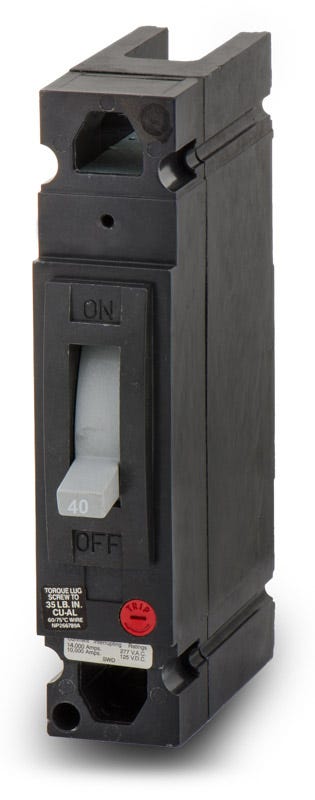

The General Electric TED113040WL is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 277VAC. It has an interrupting rating of 14kAIC at 120/240/277VAC. The TED113040WL has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | TED |
| Amperage | 40 |
| Voltage | 277VAC |
| Poles | 1 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Approval | UL, CSA |
| Interrupting Rating | 14kAIC at 120/240/277VAC |
| Frame Type | TED |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 3-3/8 |
| Width (in) | 1-3/8 |
| Height (in) | 6-5/16 |
| For Use With | Panelboards |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 1/0 AWG (Al); 3 AWG (Cu) |
| Min Wire Size | 1/0 AWG (Al); 3 AWG (Cu) |
| Mpn | TED113040WL |
| Upc | 783164082517 |
| Gtin | 783164082517 |
