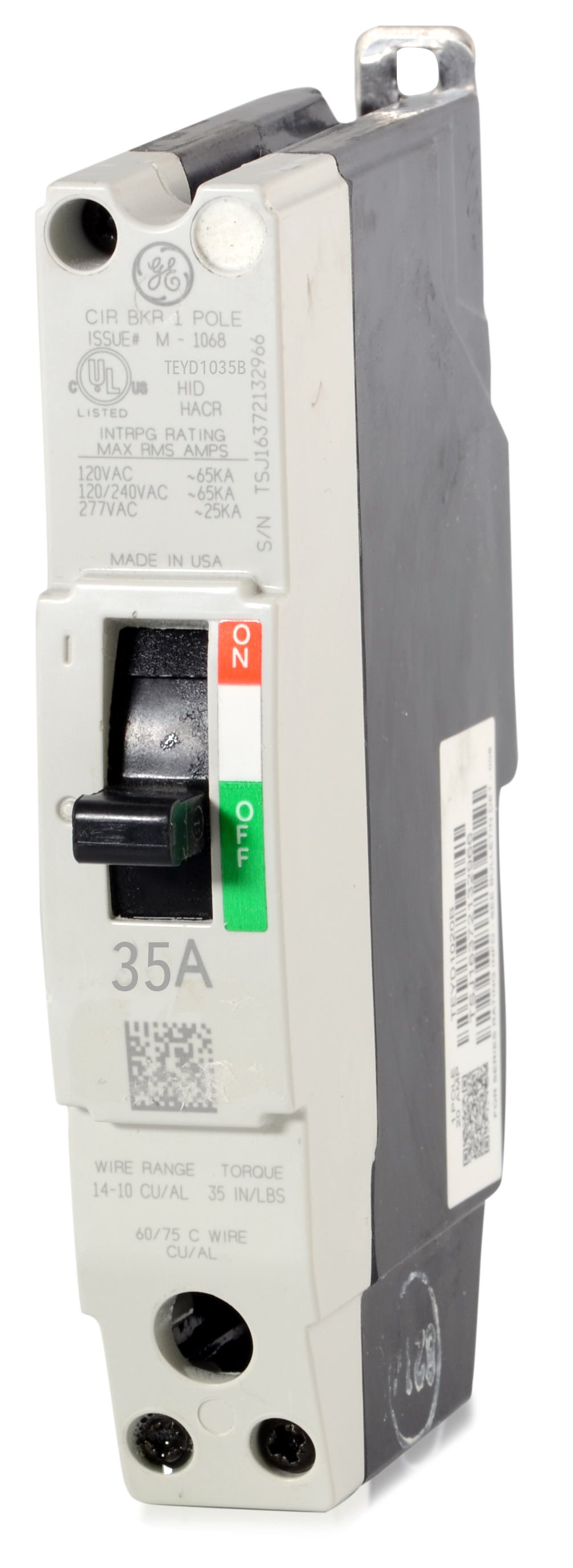

The General Electric TEYD1035B is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 35 Amps and a voltage rating of 277/480VAC, 125VDC. It has an interrupting rating of 25kAIC at 480V. The TEYD1035B has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | TEYD |
| Amperage | 35 |
| Voltage | 277/480VAC, 125VDC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 25kAIC at 480V |
| Frame Type | TEY |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| For Use With | Lighting Panels, Motor Control Centers and Panelboards |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 10 AWG |
| Min Wire Size | 4 AWG |
| Mpn | TEYD1035B |
| Upc | 783164461503 |
