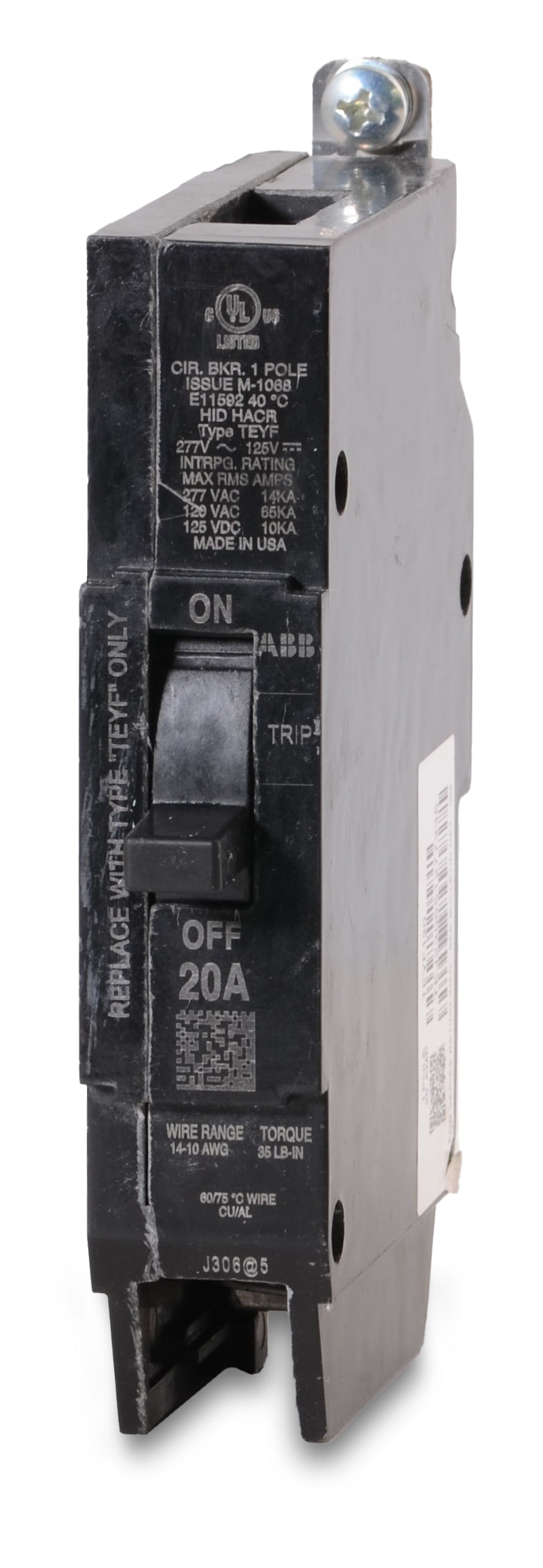

The General Electric TEYF120 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240/277/480VAC, 125VDC. It has an interrupting rating of 18kA at 277VAC. The TEYF120 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | TEY |
| Amperage | 20 |
| Voltage | 120/240/277/480VAC, 125VDC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 18kA at 277VAC |
| Frame Type | TEY |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Lug |
| For Use With | GE Light Panels, Motor Control Centers and Panelboards |
| Standards | UL, CSA |
| Temperature Rating | 40°C |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Body Material | Plastic |
| Max Wire Size | 10 AWG |
| Min Wire Size | 14 AWG |
| Mpn | TEYF120 |
| Upc | 783164388220 |
