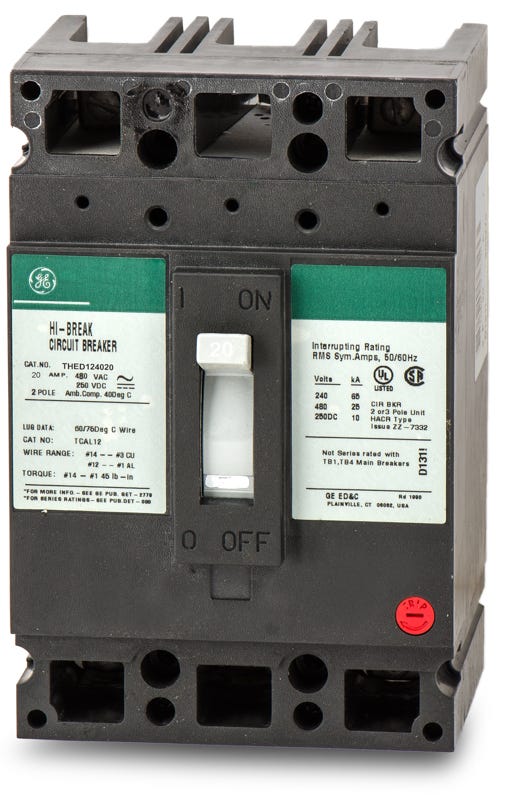

The General Electric THED124020 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 480V. It has an interrupting rating of 25kAIC at 480V. The THED124020 has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THED |
| Amperage | 20 |
| Voltage | 480V |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 25kAIC at 480V |
| Frame Type | TED |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | THED124020 |
| Upc | 783164231236 |
| Gtin | 783164231236 |
