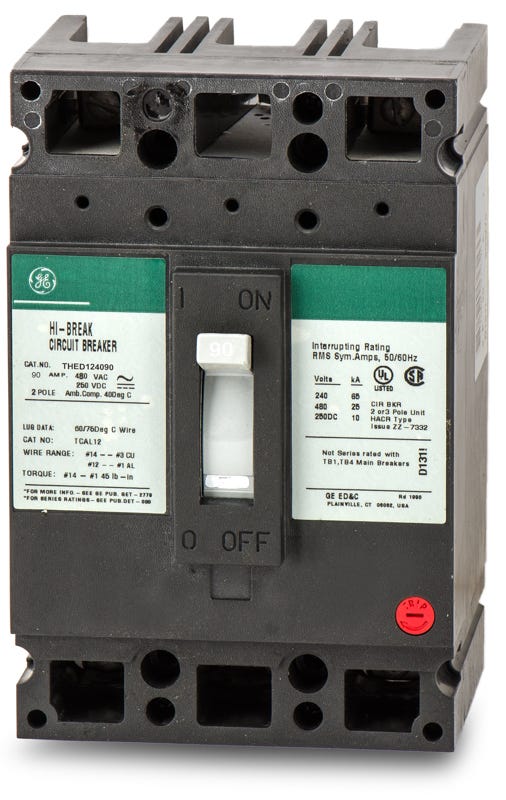

The General Electric THED124090 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 480VAC. It has an interrupting rating of 25kAIC at 480V. The THED124090 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THED |
| Amperage | 90 |
| Voltage | 480VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Interrupting Rating | 25kAIC at 480V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | THED124090-R |
