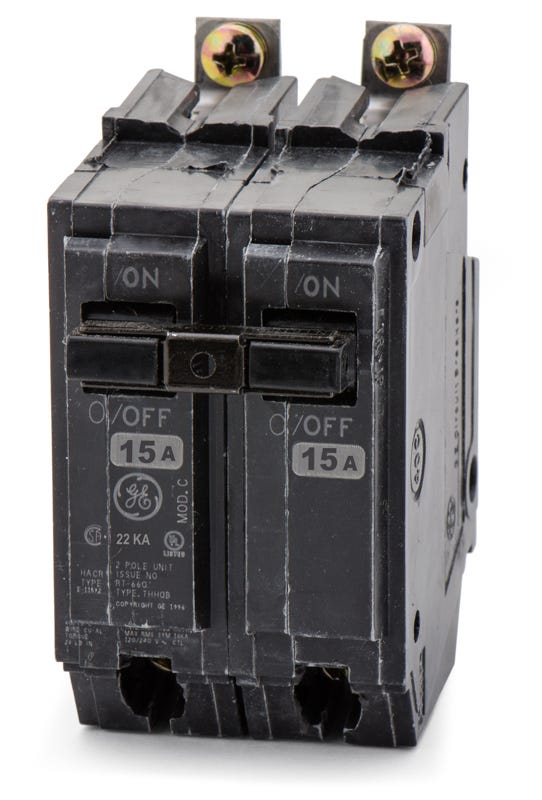

The General Electric THHQB2115 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 240VAC. It has an interrupting rating of 22kAIC at 240V. The THHQB2115 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THHQB |
| Amperage | 15 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 22kAIC at 240V |
| Frame Type | THQB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | THHQB2115 |
| Upc | 783164118339 |
| Gtin | 783164118339 |
