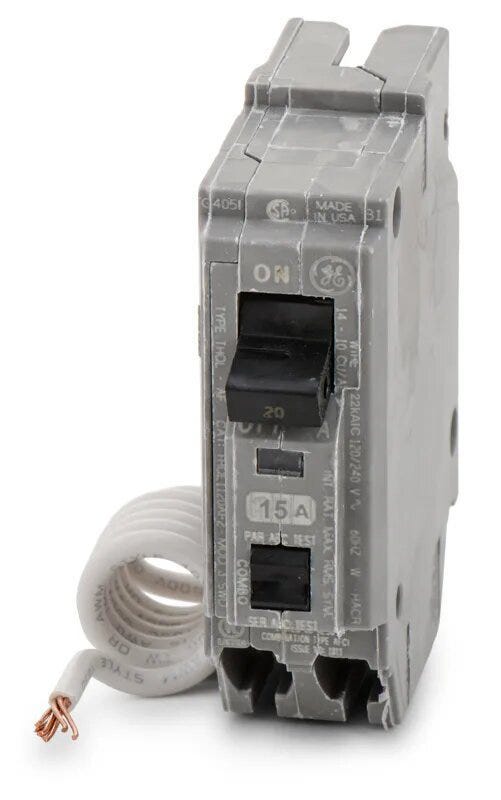

The General Electric THHQL1115AF2 is a 1 Pole molded case combination arc fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kA at 120/240VAC. The THHQL1115AF2 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THHQL |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 22kA at 120/240VAC |
| Frame Type | THQL |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| For Use With | Power Mark Gold Load Centers and AQ Lighting Panels |
| Standards | UL, CSA |
| Temperature Rating | 10 to 50°C |
| Circuit Breaker Type | CAFCI |
| Actuator Type | Toggle |
| Body Material | Plastic |
| Max Wire Size | 10 AWG |
| Min Wire Size | 14 AWG |
| Mpn | THHQL1115AF2 |
| Upc | 783164652857 |
