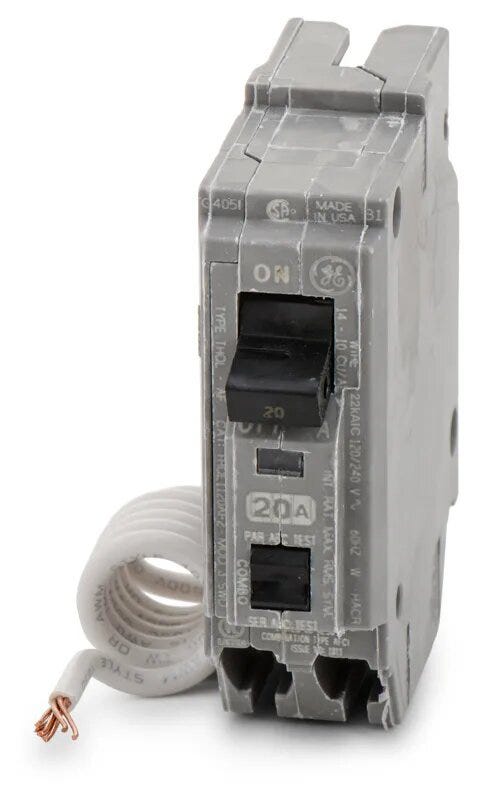

The General Electric THHQL1120AF is a 1 Pole molded case arc fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kA at 120/240VAC. The THHQL1120AF has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THHQ |
| Amperage | 20 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Mounting Type | Plug-On |
| Contactor Type | Magnetic |
| Interrupting Rating | 22kA at 120/240VAC |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Breaker Feature | Arc Fault |
| Mpn | THHQL1120AF |
| Upc | 78316430284 |
| Gtin | 78316430284 |
