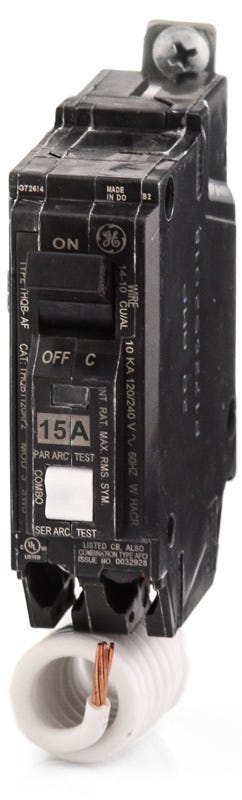

The General Electric THQB1115AF2 is a 1 Pole molded case arc fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The THQB1115AF2 has a bolt-on mounting type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQB |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | THQB |
| Connection Type | Screw Clamp |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| For Use With | Lighting Panels, Load Centers |
| Standards | HACR |
| Circuit Breaker Type | AFCI |
| Actuator Type | Toggle |
| Max Wire Size | 8 AWG |
| Min Wire Size | 14 AWG |
| Mpn | THQB1115AF2 |
| Upc | 783164652864 |
