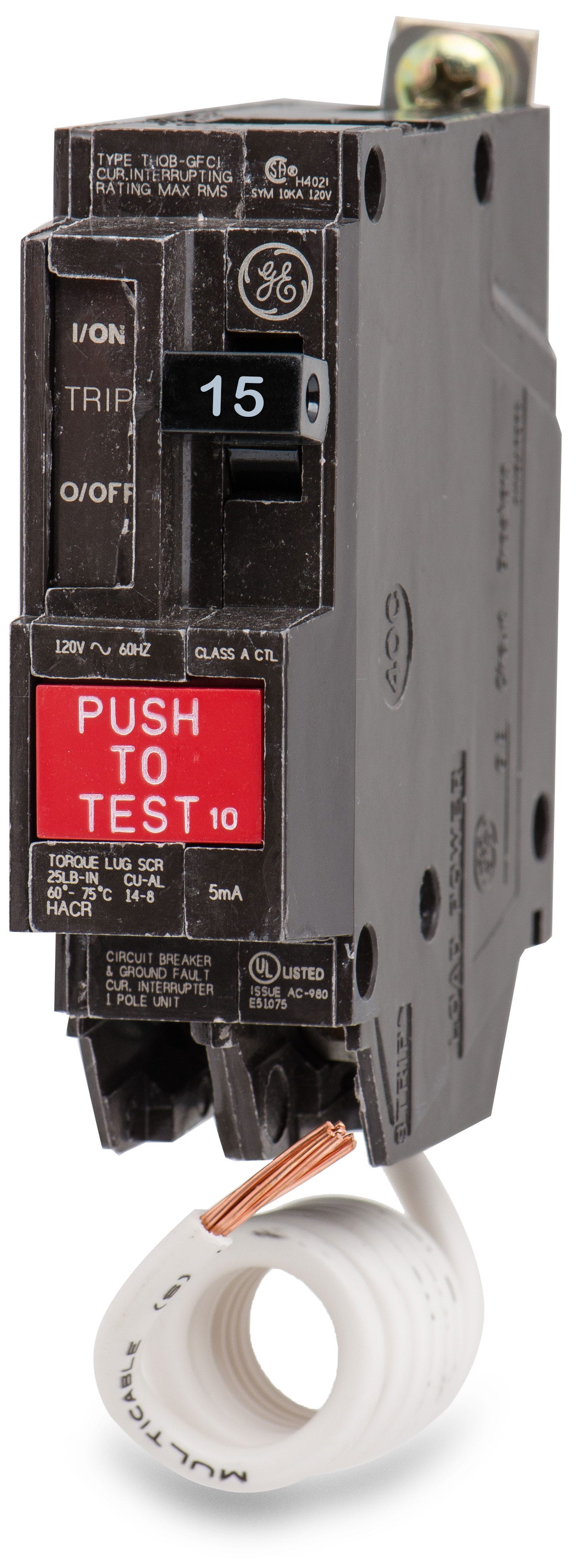

The General Electric THQB1115GF is a 1 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The THQB1115GF has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQB |
| Amperage | 15 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | THQB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 2.38 |
| Width (in) | 1 |
| Height (in) | 3.28 |
| For Use With | AQ Lighting Panels |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Max Wire Size | 8 AWG |
| Min Wire Size | 14 AWG |
| Mpn | THQB1115GF |
| Upc | 78316408600 |
| Gtin | 783164086003 |
