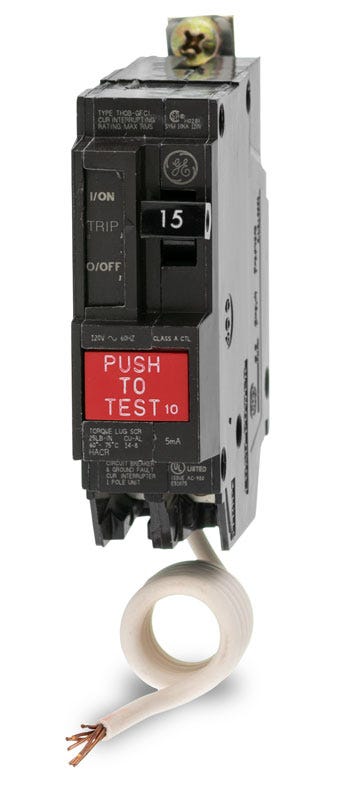

The General Electric THQB1115GFT is a 1 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The THQB1115GFT has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQB |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | THQB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Lug |
| Temperature Rating | 40 ºC |
| Circuit Breaker Type | GFCI |
| Upc | 783164485462 |
| Gtin | 783164485462 |
