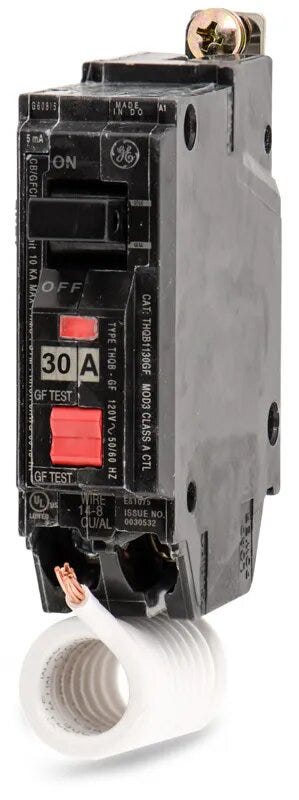

The General Electric THQB1130GF is a 1 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@120V. The THQB1130GF has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQB |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 10kAIC@120V |
| Frame Type | THQB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | 14 to 8 AWG, 12 to 8 AWG |
| For Use With | GE AQ Lighting Panels |
| Standards | UL, CSA, HACR |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Max Wire Size | 8 AWG |
| Min Wire Size | 14 AWG |
| Mpn | THQB1130GF |
| Upc | 783164086027 |
