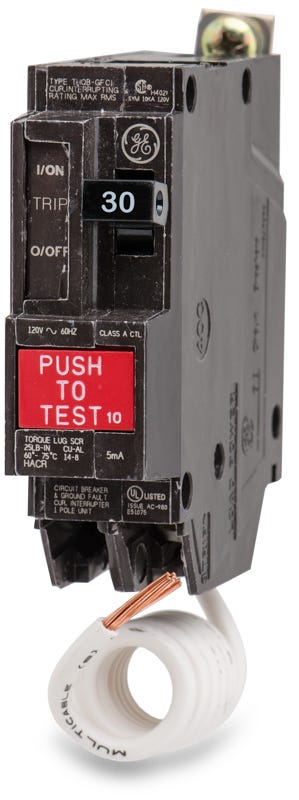

The General Electric THQB1130GFI is a 1 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120V. It has an interrupting rating of 10kAIC at 120V. The THQB1130GFI has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQB |
| Amperage | 30 |
| Voltage | 120V |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | THQB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Circuit Breaker Type | GFCI |
| Mpn | THQB1130GFI |
| Gtin | 783164086027 |
