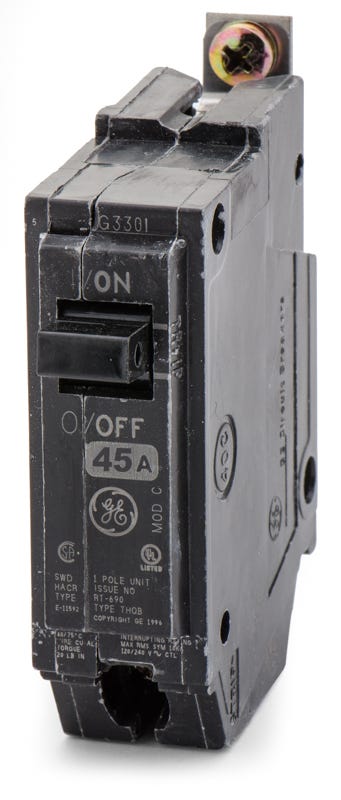

The General Electric THQB1145 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The THQB1145 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQB |
| Amperage | 45 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | THQB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 2-3/8 |
| Width (in) | 1 |
| Height (in) | 3-9/32 |
| For Use With | Lighting Panels, Load Centers |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 8 MCM |
| Min Wire Size | 12 MCM (Al); 14 MCM (Cu) |
| Mpn | THQB1145 |
| Upc | 783164059816 |
| Gtin | 783164059816 |
