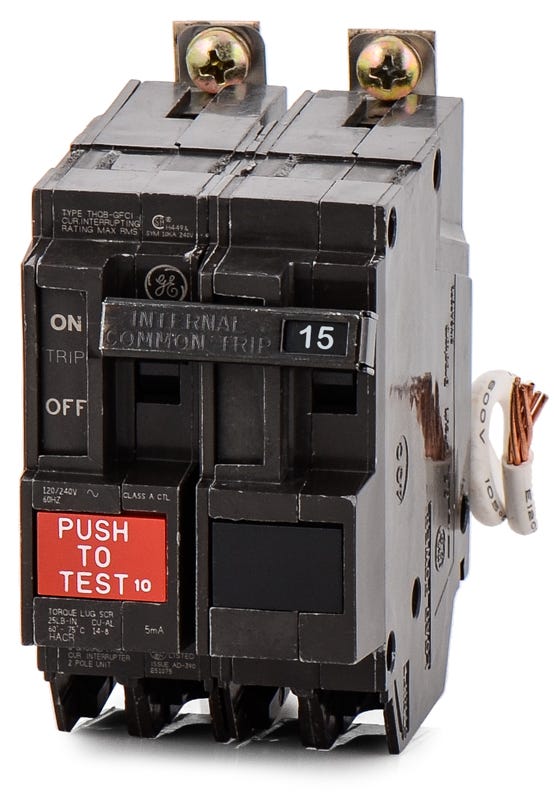

The General Electric THQB2115GFI is a 2 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The THQB2115GFI has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQB |
| Amperage | 15 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | THQB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Circuit Breaker Type | GFCI |
| Mpn | THQB2115GF-R |
