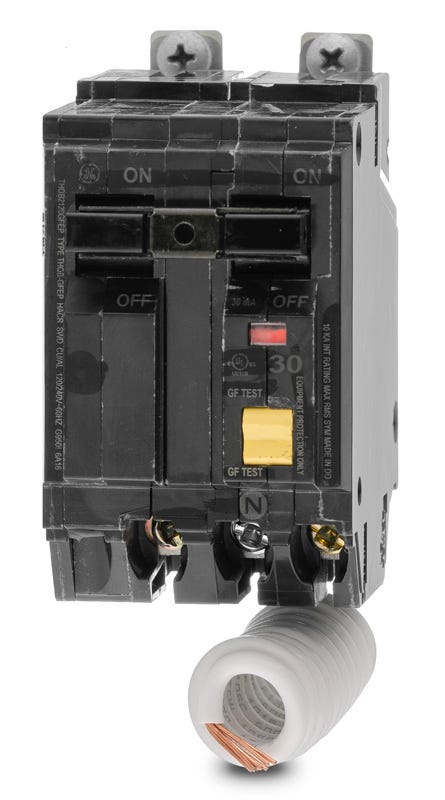

The General Electric THQB2130GFEP is a 2 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The THQB2130GFEP has a bolt-on mounting type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | Q-Line |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | THQB |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Mpn | THQB2130GFEP |
| Upc | 783164060249 |
