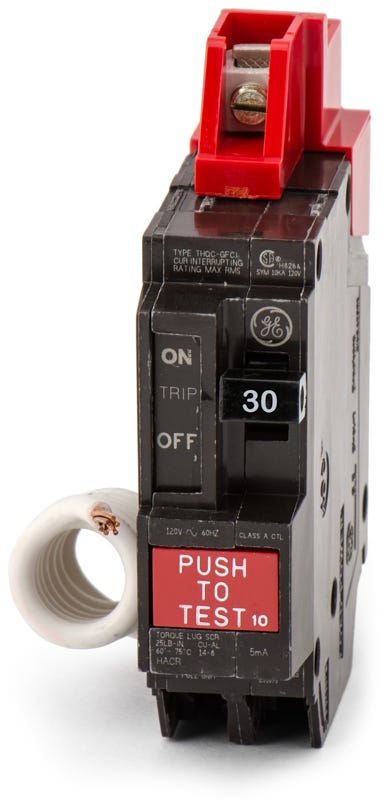

The General Electric THQC1130GF is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 120V. It has an interrupting rating of 10kAIC at 120V. The THQC1130GF has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQC |
| Amperage | 30 |
| Voltage | 120V |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | THQC |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Mpn | THQC1130GF |
| Upc | 78316413160 |
| Gtin | 783164131604 |
