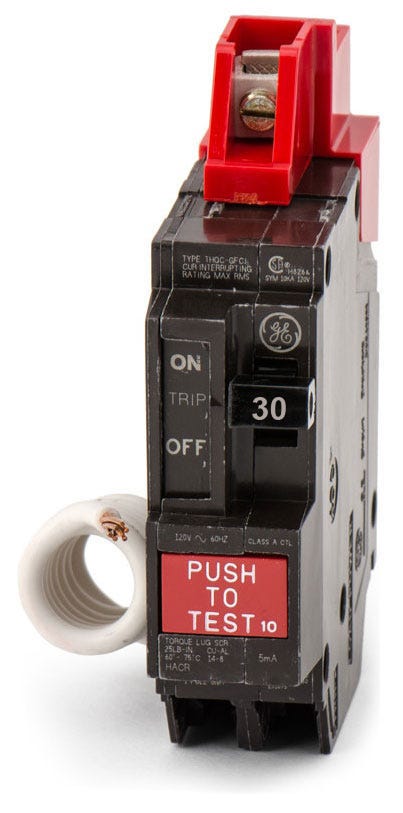

The General Electric THQC1130GFT is a 1 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120V. It has an interrupting rating of 10kAIC at 120V. The THQC1130GFT has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | Q-Line |
| Amperage | 30 |
| Voltage | 120 |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 10kA@120V |
| Frame Type | THQC |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Terminal Connection | Load side lug |
| Mpn | THQC1130GFT |
| Upc | 783164485639 |
| Gtin | 783164485639 |
