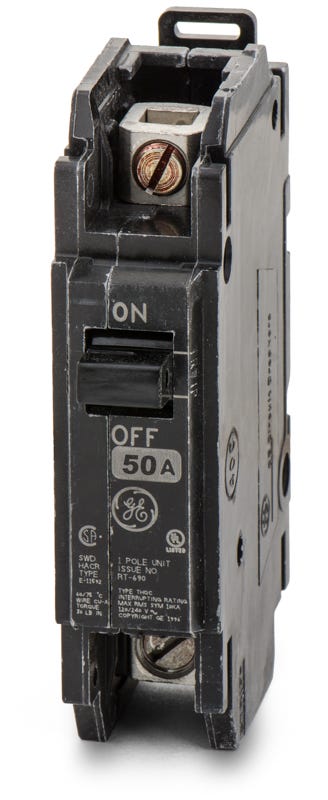

The General Electric THQC1150WL is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The THQC1150WL has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQC |
| Amperage | 50 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Din Rail |
| Contactor Type | Magnetic |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120/240VAC. |
| Frame Type | THQC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Length (in) | 2-3/8 |
| Width (in) | 1 |
| Height (in) | 3-9/32 |
| For Use With | Panelboards |
| Actuator Type | Toggle |
| Max Wire Size | 3 AWG |
| Min Wire Size | 8 AWG |
| Mpn | THQC1150WL |
| Upc | 783164048612 |
| Gtin | 783164048612 |
