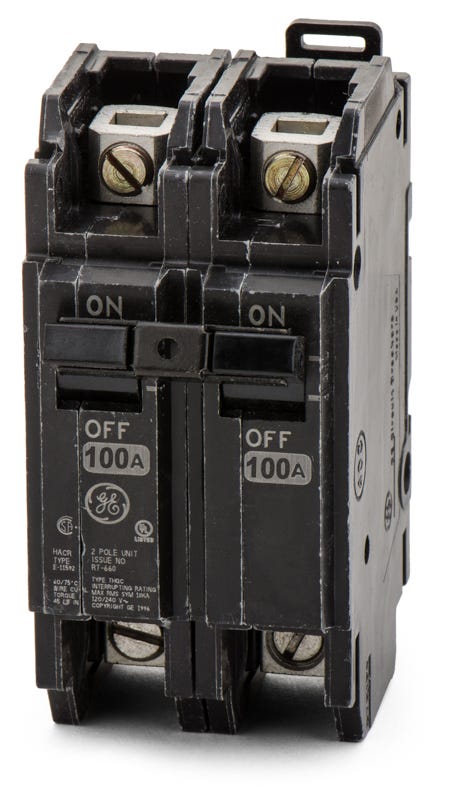

The General Electric THQC21100 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240V. The THQC21100 has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQC |
| Amperage | 100 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Din Rail |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120/240V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | THQC21100 |
| Upc | 783164125894 |
| Gtin | 783164125894 |
